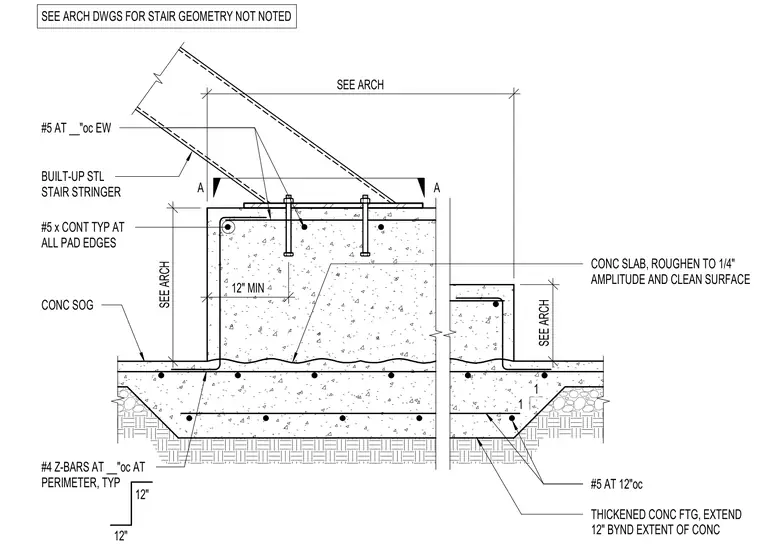

A built-up steel stair stringer anchors to a thickened concrete footing and slab on grade. The concrete slab features number five reinforcing bars at spacing each way over a roughened surface, with continuous number five bars at all pad edges. Number four Z-bars occur at specified spacing along the perimeter. The thickened concrete footing extends twelve inches beyond the extent of the concrete above.
A A SEE ARCH CONC SOG #5 x CONT TYP AT ALL PAD EDGES #4 Z-BARS AT __"oc AT PERIMETER, TYP 12" 12" SEE ARCH CONC SLAB, ROUGHEN TO 1/4" AMPLITUDE AND CLEAN SURFACE #5 AT __"oc EW SEE ARCH BUILT-UP STL STAIR STRINGER SEE ARCH DWGS FOR STAIR GEOMETRY NOT NOTED #5 AT 12"oc 1 1 THICKENED CONC FTG, EXTEND 12" BYND EXTENT OF CONC 12" MIN
