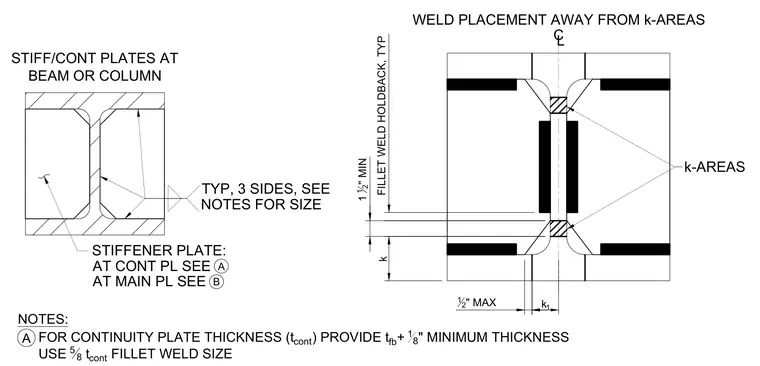

Continuity plate thickness must be at least the beam flange thickness plus one-eighth inch, with a fillet weld size equal to five-eighths of the continuity plate thickness applied on three sides. Fillet welds require a one-and-a-half-inch minimum holdback and must be placed away from the column k-areas, maintaining a maximum distance of one-half inch from the k1 dimension.
FOR CONTINUITY PLATE THICKNESS (t cont ) PROVIDE t fb + 18 " MINIMUM THICKNESS TYP, 3 SIDES, SEE STIFFENER PLATE: A AT CONT PL SEE AT MAIN PL SEE A B NOTES FOR SIZE NOTES: USE 5 8 t cont FILLET WELD SIZE STIFF/CONT PLATES AT BEAM OR COLUMN k 1 1 2 " MIN FILLET WELD HOLDBACK, TYP WELD PLACEMENT AWAY FROM k-AREAS 12 " MAX k-AREAS CL k 1
