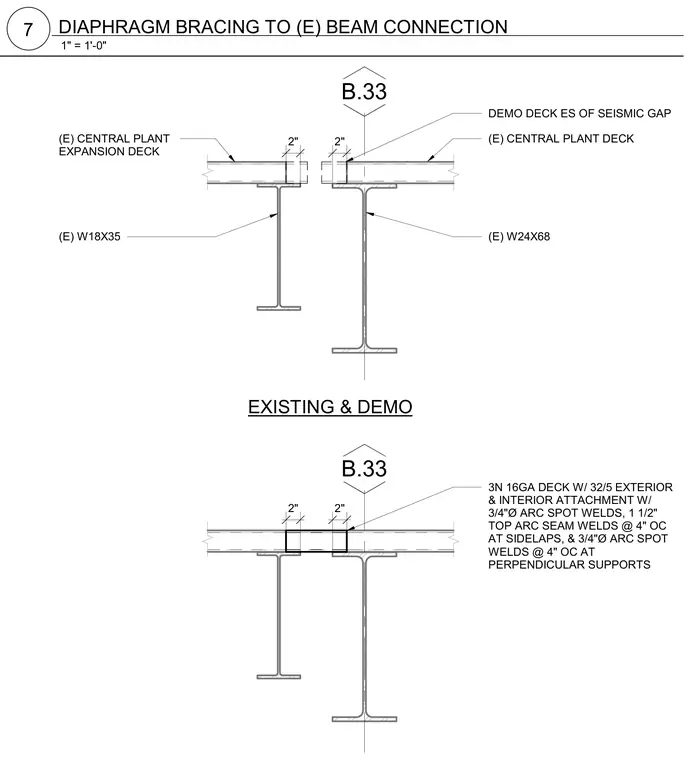

Connection of metal decking and diaphragm bracing across a seismic gap supported by existing steel wide-flange beams. The assembly features an existing W18x35 beam carrying an existing central plant expansion deck and an existing W24x68 beam carrying an existing central plant deck, separated by a seismic gap referenced to drawing B.33. The new metal deck configuration specifies 3N 16-gauge deck with 32/5 exterior and interior attachment, secured using three-quarter-inch-diameter arc spot welds, one-and-a-half-inch top arc seam welds at four inches on center at sidelaps, and three-quarter-inch-diameter arc spot welds at four inches on center at perpendicular supports.
3N 16GA DECK W/ 32/5 EXTERIOR & INTERIOR ATTACHMENT W/ 3/4"Ø ARC SPOT WELDS, 1 1/2" TOP ARC SEAM WELDS @ 4" OC AT SIDELAPS, & 3/4"Ø ARC SPOT WELDS @ 4" OC AT PERPENDICULAR SUPPORTS 2" 2" B.33 EXISTING & DEMO 2" 2" (E) CENTRAL PLANT DECK (E) CENTRAL PLANT EXPANSION DECK (E) W24X68 (E) W18X35 DEMO DECK ES OF SEISMIC GAP B.33 1" = 1'-0" 7 DIAPHRAGM BRACING TO (E) BEAM CONNECTION
