Structural · S-PGHQY

Steel Beam to Open Web Steel Joist Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

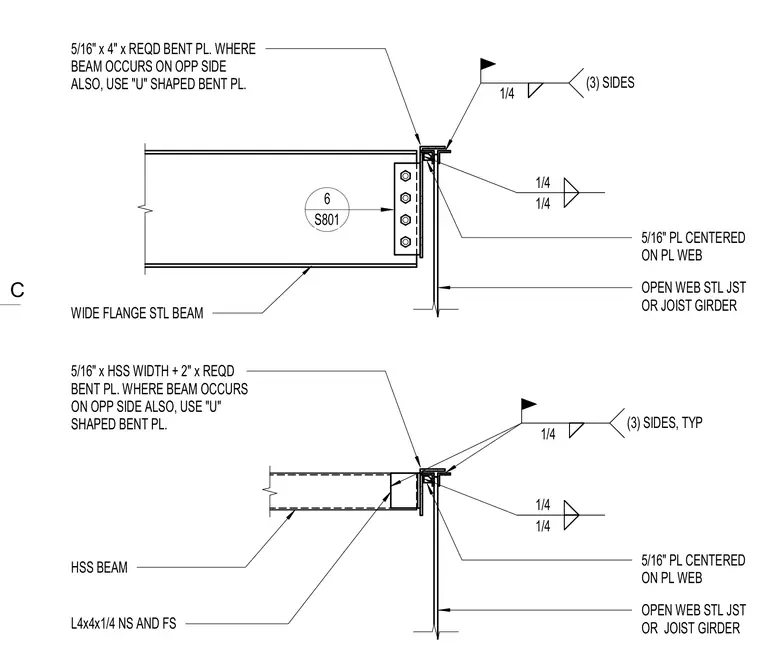

A wide flange steel beam or hollow structural section beam frames into an open web steel joist or joist girder. A five-sixteenth-inch plate is centered on the plate web, paired with a five-sixteenth-inch by four-inch bent plate, or a five-sixteenth-inch by hollow structural section width plus two-inch bent plate depending on the framing member. Where a beam occurs on the opposite side, a U-shaped bent plate is used. Fillet welds of one-quarter inch size are applied to three sides typically, with angles specified as four-by-four-by-one-quarter-inch on near side and far side for hollow structural section framing.
