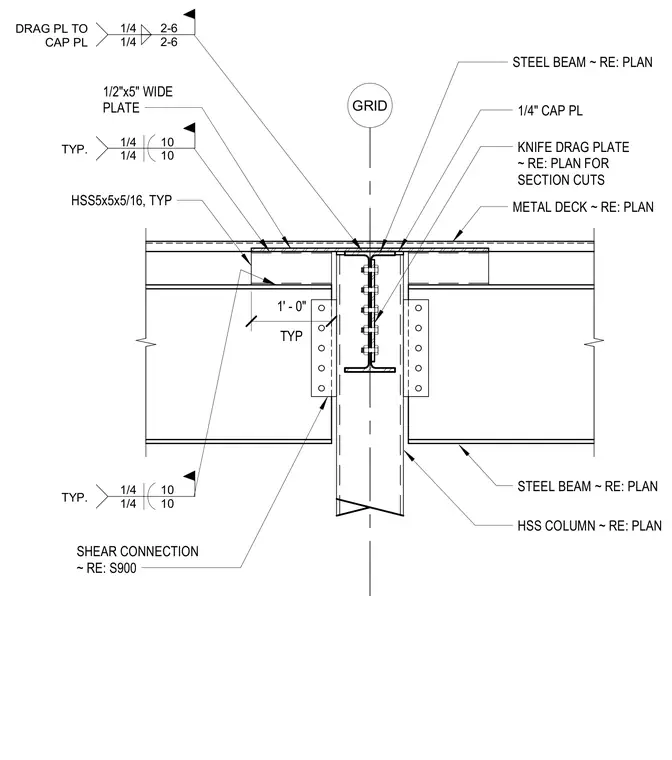

A structural steel beam frames into a hollow structural section column with a welded knife drag plate and bolted shear connection. A one-quarter inch thick cap plate tops the HSS5x5x5/16 column, receiving a knife drag plate welded with one-quarter inch fillet welds on two sides for two feet six inches. A one-half by five inch wide plate ties into the assembly with typical one-quarter inch fillet welds. Framing beams connect via bolted shear tabs detailed per sheet S900, located below the metal deck assembly.
GRID STEEL BEAM ~ RE: PLAN HSS COLUMN ~ RE: PLAN METAL DECK ~ RE: PLAN STEEL BEAM ~ RE: PLAN SHEAR CONNECTION ~ RE: S900 KNIFE DRAG PLATE ~ RE: PLAN FOR SECTION CUTS HSS5x5x5/16, TYP 1/2"x5" WIDE PLATE TYP 1' - 0" 1/4 10 1/4 10 TYP. 1/4 10 1/4 10 TYP. 1/4 2-6 1/4 2-6 DRAG PL TO CAP PL 1/4" CAP PL
