Structural · S-PGD75

Typical Steel Beam and Metal Deck Bearing Details

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Decks Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Bolted Connection Deck Attachment

About this detail

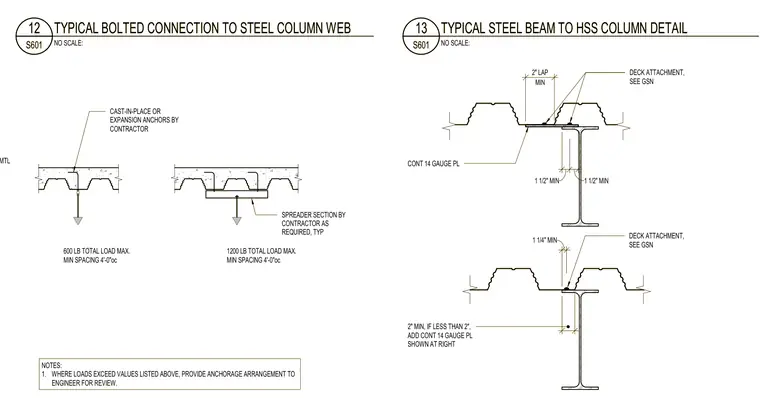

Metal deck bearing and attachment conditions over structural steel beams, including cast-in-place or expansion anchors supporting up to 600 or 1200 pound total loads with a minimum spacing of four feet on center. A contractor-provided spreader section is required when clearances are tight, alongside a continuous 14-gauge plate added when dimensions fall below a two-inch minimum. Deck attachment requires a minimum two-inch lap and follows general structural notes. Additional edge clearances of one and one-half inches and one and one-quarter inches govern the placement of deck connections relative to the beam flange.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
