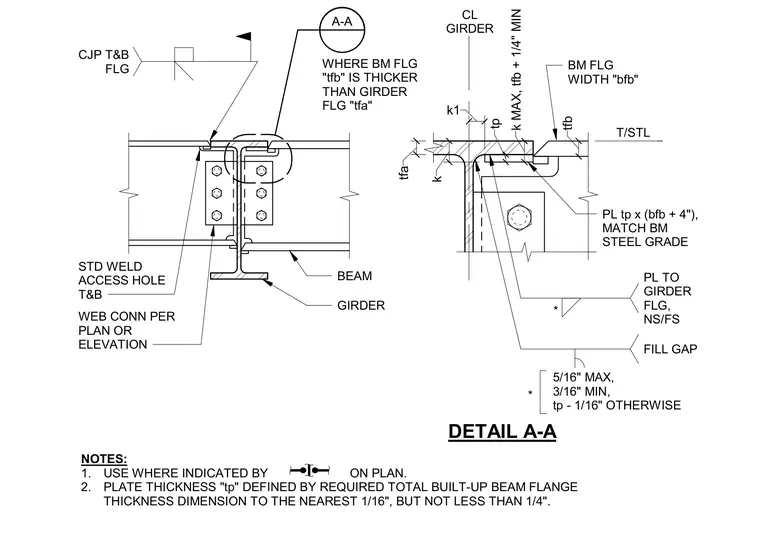

Built-Up Beam Flange and Web Connection Detail

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection

About this detail

A structural steel beam connects to a supporting girder with complete joint penetration welds on the top and bottom flanges and a bolted web connection. Standard weld access holes are provided at the top and bottom of the web. A built-up plate matches the beam steel grade and spans across the flange thickness transitions. Filler plates and specific gap tolerances accommodate dimensional differences between the beam and girder flanges.
