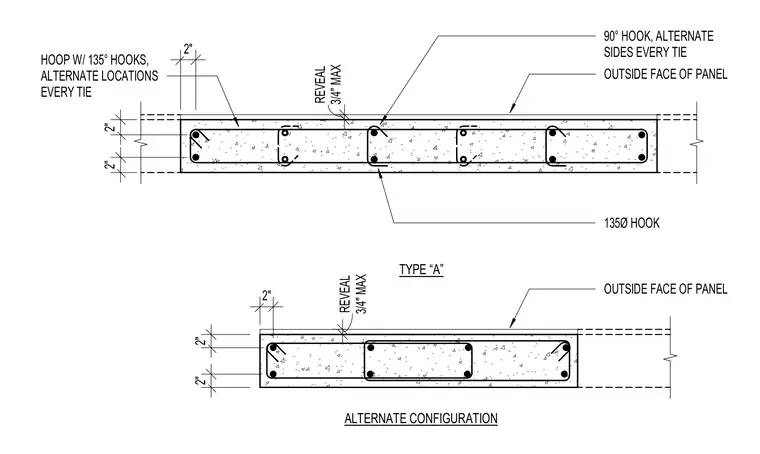

Concrete tilt-up column cross-sections incorporate reinforcing steel ties and hooks. The column includes hoops with 135-degree hooks placed at alternate locations every tie, alongside 90-degree hooks alternating sides on every tie. The outside face of the panel features a maximum 3/4-inch reveal with 2-inch clearances. An alternate configuration shows modified internal tie placements and rebar arrangements.
ALTERNATE CONFIGURATION OUTSIDE FACE OF PANEL 2" 2" 2" REVEAL 3/4" MAX TYPE “A” OUTSIDE FACE OF PANEL 2" 2" 2" 3/4" MAX REVEAL 135Ø HOOK 90° HOOK, ALTERNATE SIDES EVERY TIE HOOP W/ 135° HOOKS, ALTERNATE LOCATIONS EVERY TIE
