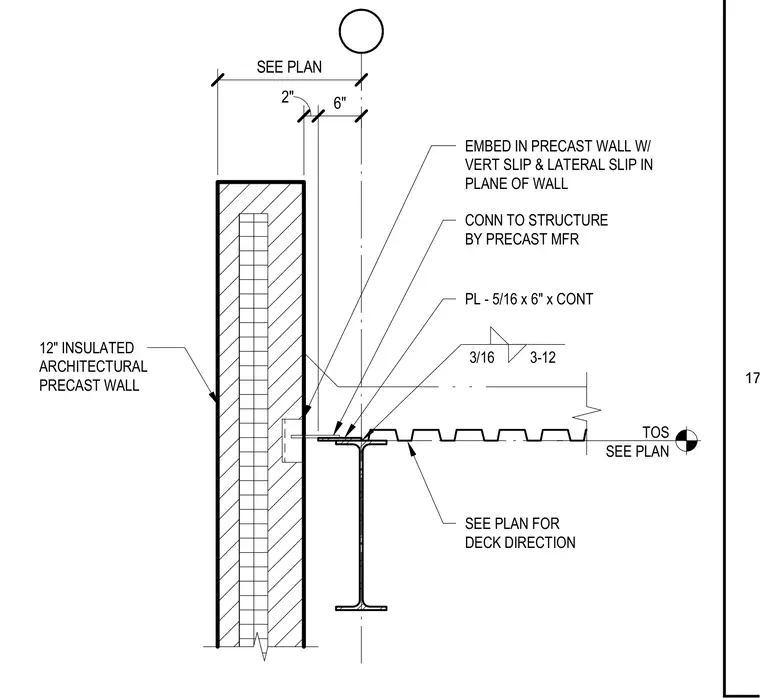

A twelve-inch insulated architectural precast concrete wall connects to the structural steel framing using a continuous five-sixteenths by six-inch steel plate. The embedment in the precast wall provides both vertical slip and lateral slip in the plane of the wall, with connection details delegated to the precast manufacturer. A continuous three-sixteenths fillet weld with three-inch welds at twelve-inch spacing secures the connection plate to the supporting steel member. The top of steel elevation and floor deck direction are coordinated per the architectural and structural plans.
12" INSULATED ARCHITECTURAL PRECAST WALL EMBED IN PRECAST WALL W/ VERT SLIP & LATERAL SLIP IN PLANE OF WALL TOS SEE PLAN PL - 5/16 x 6" x CONT 3/16 3-12 2" 6" SEE PLAN CONN TO STRUCTURE BY PRECAST MFR SEE PLAN FOR DECK DIRECTION 173 N Broadway, 2nd Floor Milwaukee, WI 53202
