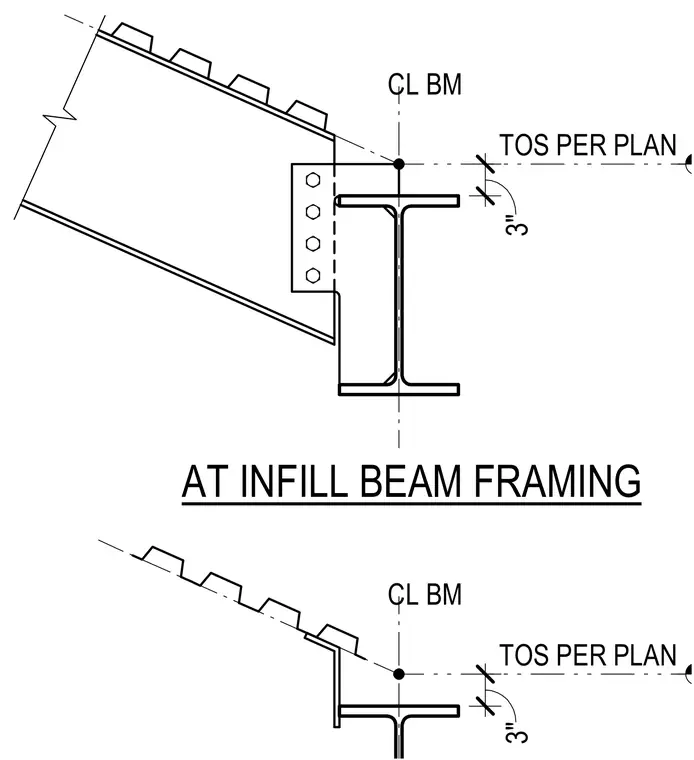

An infill framing connection details a sloped steel beam tied into a wide flange support via a four-bolt shear tab. The top of steel is dimensioned three inches relative to the beam centerline per plan. A secondary bent plate detail below supports metal decking bearing across the structural members.
