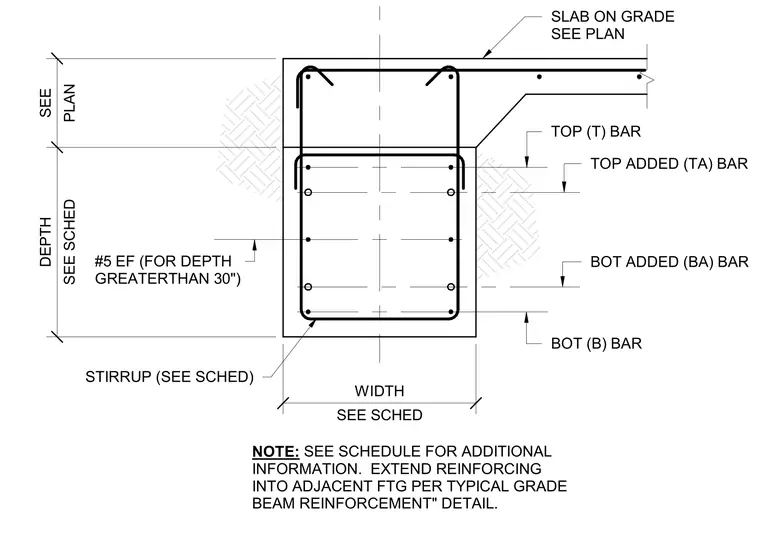

A reinforced concrete grade beam supports a concrete slab on grade with dimensions and sizes per schedule. The beam section contains top bars, bottom bars, top added bars, bottom added bars, and closed stirrups sized per schedule. For beam depths greater than thirty inches, number five reinforcing bars are provided on each face. Reinforcing extends into adjacent footings per typical grade beam reinforcement details.
STIRRUP (SEE SCHED) TOP (T) BAR BOT (B) BAR TOP ADDED (TA) BAR BOT ADDED (BA) BAR #5 EF (FOR DEPTH GREATERTHAN 30") SLAB ON GRADE SEE PLAN SEE SCHED WIDTH SEE SCHED DEPTH PLAN SEE NOTE: SEE SCHEDULE FOR ADDITIONAL INFORMATION. EXTEND REINFORCING INTO ADJACENT FTG PER TYPICAL GRADE BEAM REINFORCEMENT" DETAIL.
