Typical Steel Beams Bearing at Steel Column

Materials

Elements

Columns Beams Roofs Decks Connections / Plates

About this detail

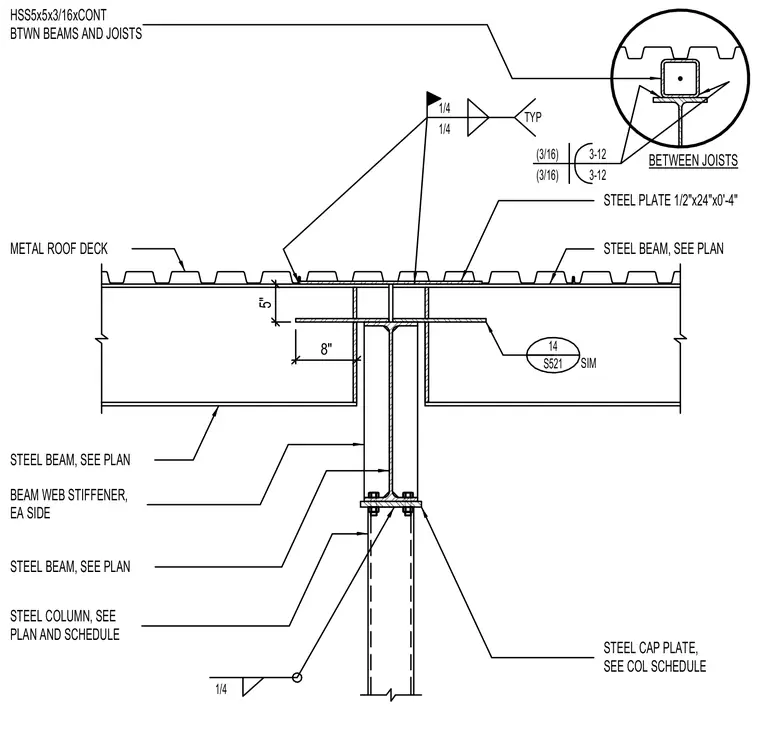

This structural detail shows a steel beam bearing on a steel column with a steel cap plate sized per the column schedule. A continuous hollow structural section measuring 5 inches by 5 inches by 3/16 inch runs between beams and joists. Metal roof deck bears across the top flanges with fillet welds specified at typical locations. Beam web stiffeners are attached to each side of the web, and a 1/2-inch by 24-inch by 4-inch steel plate is integrated into the assembly.
