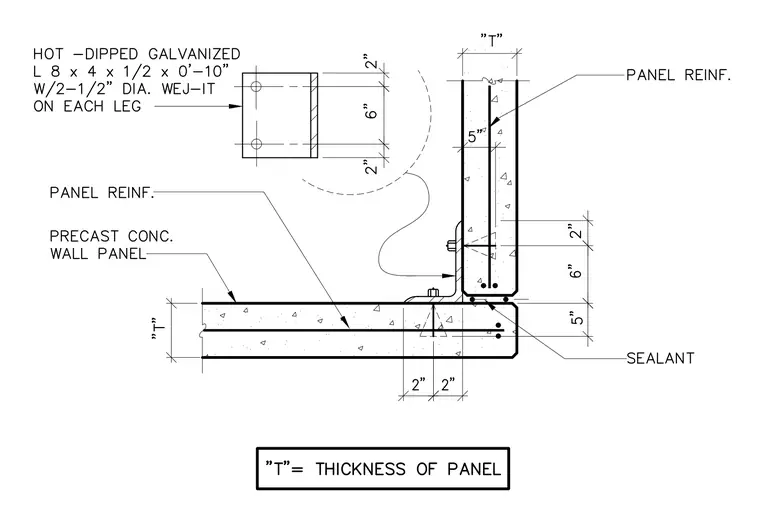

Precast concrete wall panels meet at a corner joint secured by hot-dipped galvanized L 8 x 4 x 1/2 x 0'-10" structural steel angles. The steel angle is fastened to each panel leg using two 1/2-inch diameter Wej-It expansion anchors. Panel reinforcement runs continuously through the concrete thickness, with sealant applied at the exterior joint gap.
