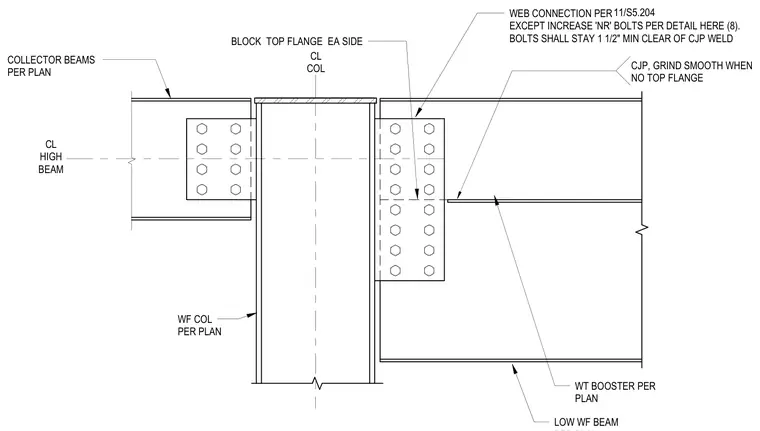

Collector beams frame into a wide-flange column at a level change with high and low beam centerlines. The web connection matches standard details with eight bolts increased as noted, and bolts maintain a one-and-a-half-inch minimum clearance from the complete joint penetration weld. The top flange is blocked on each side where required, and a WT booster attaches to the low wide-flange beam with a complete joint penetration weld ground smooth.
WF COL PER PLAN BLOCK TOP FLANGE EA SIDE WEB CONNECTION PER EXCEPT INCREASE 'NR' BOLTS PER DETAIL HERE (8). BOLTS SHALL STAY 1 1/2" MIN CLEAR OF CJP WELD 11/S5.204 CJP, GRIND SMOOTH WHEN NO TOP FLANGE COLLECTOR BEAMS PER PLAN CL COL CL HIGH BEAM WT BOOSTER PER PLAN LOW WF BEAM
