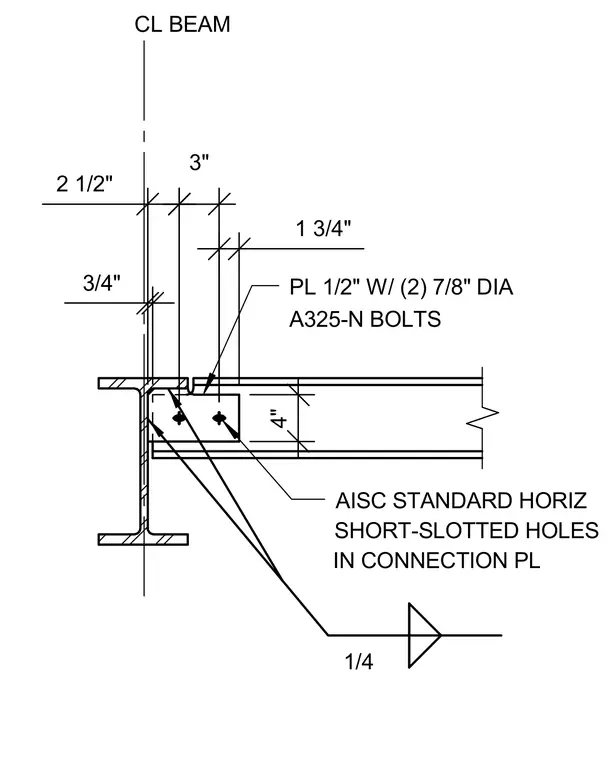

A steel beam connects to a supporting member using a one-half-inch connection plate secured by two seven-eighth-inch diameter A325-N bolts. The connection plate incorporates AISC standard horizontal short-slotted holes. A one-quarter-inch fillet weld fastens the assembly. Dimensional layout indicators establish specific edge distances and centerlines for the connection.
3/4" 4" 2 1/2" 1 3/4" 3" CL BEAM PL 1/2" W/ (2) 7/8" DIA A325-N BOLTS 1/4 AISC STANDARD HORIZ SHORT-SLOTTED HOLES IN CONNECTION PL
