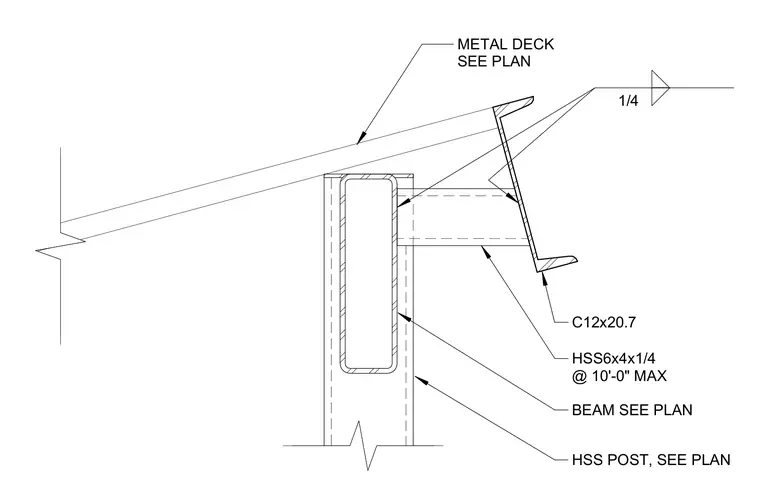

A C12x20.7 channel section connects to an HSS6x4x1/4 horizontal member spaced at ten feet maximum, which frames into an HSS post sized per plan. A one-quarter inch fillet weld secures the channel to the HSS member. Metal deck bears at the top of the assembly per plan.
C12x20.7 HSS6x4x1/4 @ 10'-0" MAX BEAM SEE PLAN HSS POST, SEE PLAN METAL DECK SEE PLAN 1/4
