A structural steel truss girder frames into a column using a grade 50 one-inch by two-foot-six-inch knife plate welded with a seven-sixteenth-inch weld. Three three-eighths-inch stiffener plates at four-inch gauge are centered on the web and welded with a one-quarter-inch fillet weld. A three-quarter-inch by one-foot-two-inch wide plate connects with two three-quarter-inch diameter erection bolts typically. A three-quarter-inch by six-inch stabilizer plate is left unwelded to the girder with a five-sixteenth-inch weld to the support below.

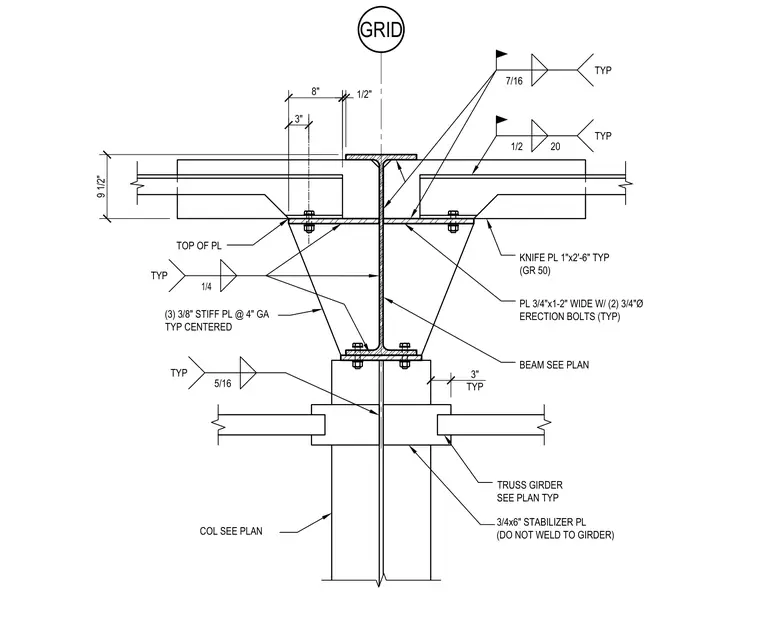

9 1/2" 3" COL SEE PLAN TRUSS GIRDER SEE PLAN TYP BEAM SEE PLAN (3) 3/8" STIFF PL @ 4" GA TYP CENTERED 7/16 TYP GRID 1/2 20 TYP KNIFE PL 1"x2'-6" TYP (GR 50) 1/4 TYP 5/16 TYP 8" 1/2" PL 3/4"x1-2" WIDE W/ (2) 3/4"Ø ERECTION BOLTS (TYP) 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) TOP OF PL 3" TYP
