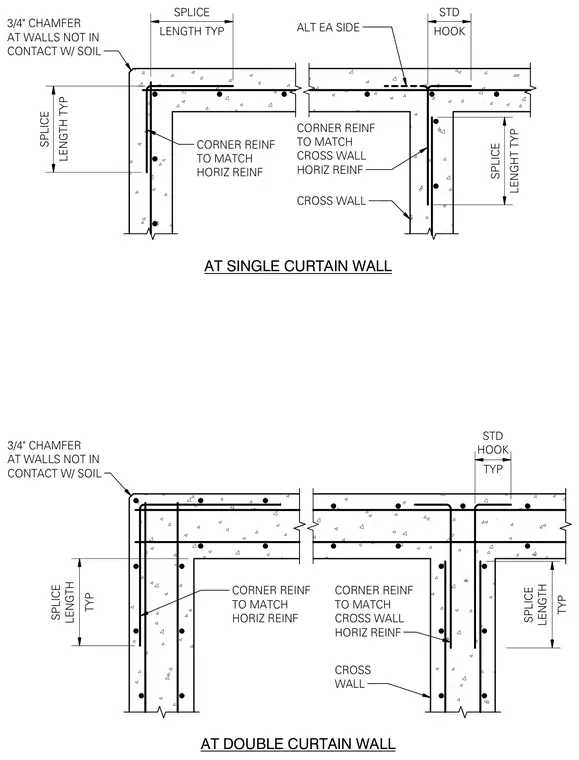

Typical concrete wall corner reinforcing configuration for single and double curtain walls. Horizontal reinforcing bars are detailed with standard hooks and lap splice lengths typical at corners and intersecting cross walls. Unexposed wall corners include a three-quarter inch chamfer where walls are not in contact with soil. Alternate bars are placed on each side as indicated for proper load transfer.
AT DOUBLE CURTAIN WALL TYP SPLICE LENGTH TYP STD HOOK TYP SPLICE LENGTH 3/4" CHAMFER AT WALLS NOT IN CONTACT W/ SOIL CORNER REINF TO MATCH HORIZ REINF CORNER REINF TO MATCH CROSS WALL HORIZ REINF CROSS WALL AT SINGLE CURTAIN WALL CORNER REINF TO MATCH HORIZ REINF CROSS WALL CORNER REINF TO MATCH CROSS WALL HORIZ REINF 3/4" CHAMFER AT WALLS NOT IN CONTACT W/ SOIL ALT EA SIDE LENGTH TYP SPLICE LENGHT TYP SPLICE HOOK STD LENGTH TYP SPLICE
