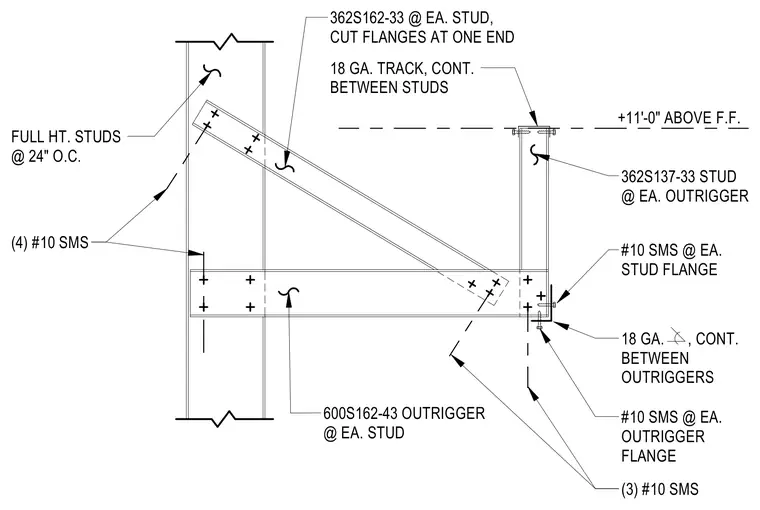

Full-height cold-formed steel studs spaced at 24 inches on center receive 600S162-43 outriggers at each stud level. A diagonal 362S162-33 brace with cut flanges at one end ties each outrigger back to the full-height studs, secured with four number 10 sheet metal screws. A vertical 362S137-33 stud connects to the outer end of each outrigger using number 10 sheet metal screws at the stud flange. An 18-gauge continuous track runs between studs and between outriggers, anchored with number 10 sheet metal screws.
+11'-0" ABOVE F.F. 18 GA. TRACK, CONT. BETWEEN STUDS 362S162-33 @ EA. STUD, CUT FLANGES AT ONE END FULL HT. STUDS @ 24" O.C. (4) #10 SMS 600S162-43 OUTRIGGER @ EA. STUD 362S137-33 STUD @ EA. OUTRIGGER #10 SMS @ EA. STUD FLANGE 18 GA. , CONT. BETWEEN OUTRIGGERS #10 SMS @ EA. OUTRIGGER FLANGE (3) #10 SMS
