Structural · S-PEDR8

Hook Or Provide Corner Bar

Materials

Concrete Reinforced Concrete

Elements

Walls Reinforcing

Connections

Rebar Splice / Development

About this detail

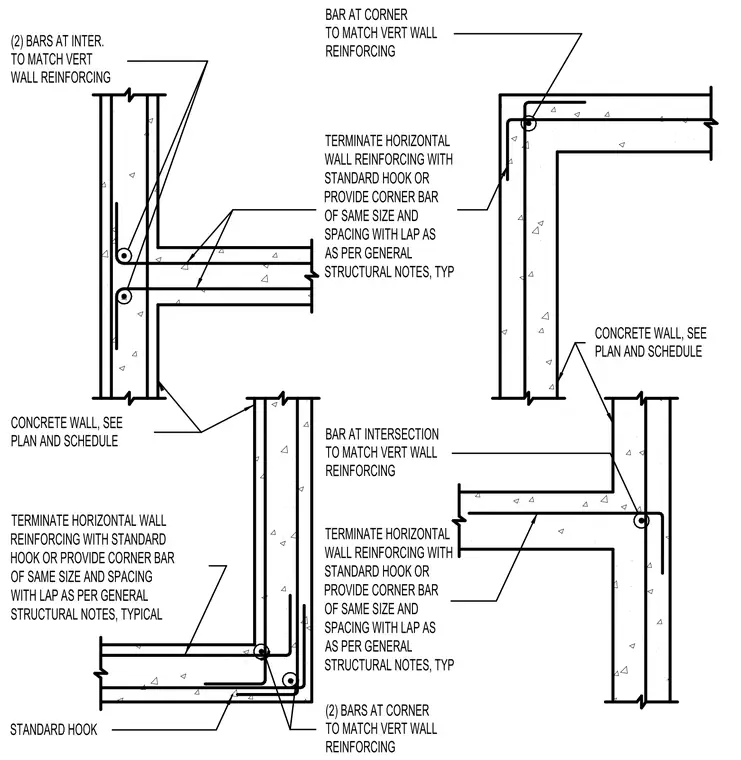

Concrete walls feature horizontal reinforcing bars terminated with standard hooks or paired corner bars of the same size and spacing, providing lap splices per general structural notes. Wall corners and intersections include two vertical bars matching the vertical wall reinforcing at the junction. Concrete wall thicknesses and schedules are determined per plan.
