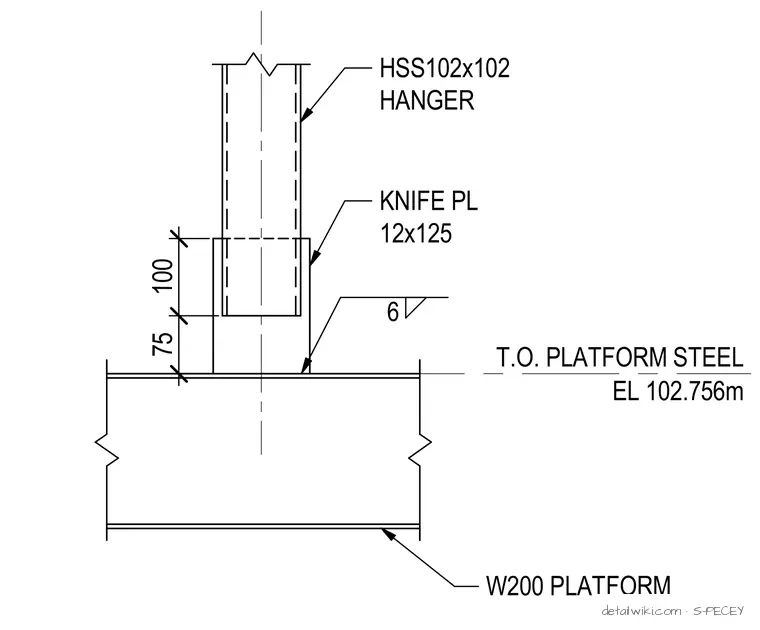

The assembly features an HSS102x102 steel hanger connected to a W200 platform beam via a 12x125 knife plate inserted into the end of the hanger. The knife plate is welded to the top flange of the platform beam with a 6mm fillet weld. Dimensions indicate a 100mm insertion depth of the knife plate and a 75mm extension above the platform steel elevation.
Text on the drawing
6 T.O. PLATFORM STEEL EL 102.756m W200 PLATFORM HSS102x102 HANGER KNIFE PL 12x125 75 100
