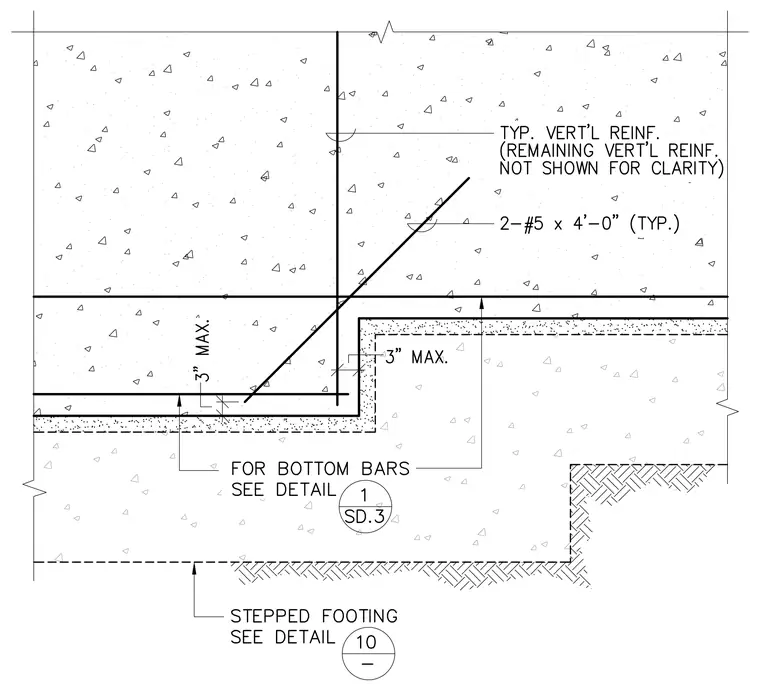

A precast concrete panel features a stepped bottom profile transitioning over a stepped footing foundation. Typical vertical reinforcement extends through the section with remaining vertical reinforcement omitted for clarity. Additional reinforcing consists of two number 5 bars measuring 4 feet 0 inches in length typically placed at the step transition. Maximum dimension clearances of 3 inches are indicated at the step corner. Bottom bar reinforcement details are referenced to detail 1 on sheet SD.3, and the stepped footing foundation is referenced to detail 10.
