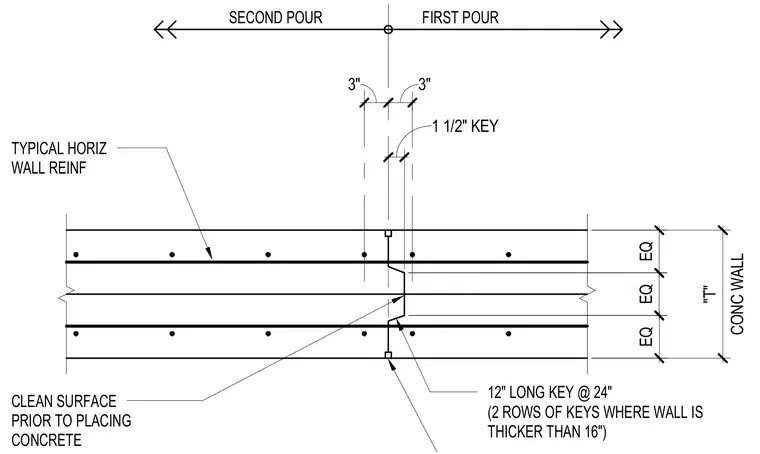

The concrete wall construction joint connects the first pour to the second pour using a twelve-inch long key spaced at twenty-four inches on center, with two rows of keys required where the wall thickness exceeds sixteen inches. The joint incorporates a one-and-one-half-inch keyway and typical horizontal wall reinforcement running continuously through the section. The surface of the first pour must be cleaned prior to placing concrete for the second pour.
FIRST POUR TYPICAL HORIZ WALL REINF CLEAN SURFACE PRIOR TO PLACING CONCRETE 12" LONG KEY @ 24" (2 ROWS OF KEYS WHERE WALL IS THICKER THAN 16") EQ EQ EQ CONC WALL "T" 3" 3" 1 1/2" KEY SECOND POUR
