Steel Beam Bearing on Interior Steel Column

Materials

Steel Metal (misc.)

Elements

Columns Beams Facades / Cladding Decks Arches Connections / Plates

Connections

Bolted Connection

About this detail

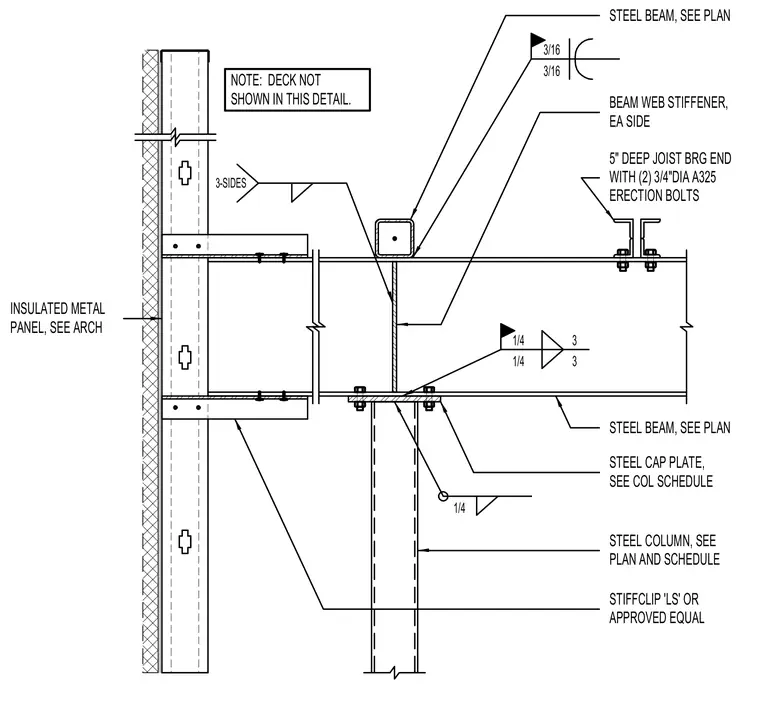

An interior steel column supports a steel beam sized per plan via a steel cap plate matching the column schedule and welded with a quarter-inch fillet weld. Beam web stiffeners are attached on each side using three-eighths-inch welds. A five-inch deep joist bearing end connects to the top flange of the beam with two three-quarter-inch diameter A325 erection bolts. An insulated metal panel assembly ties into the column framing using Stiffclip 'LS' clips or an approved equal, with the metal deck omitted from this specific detail.
