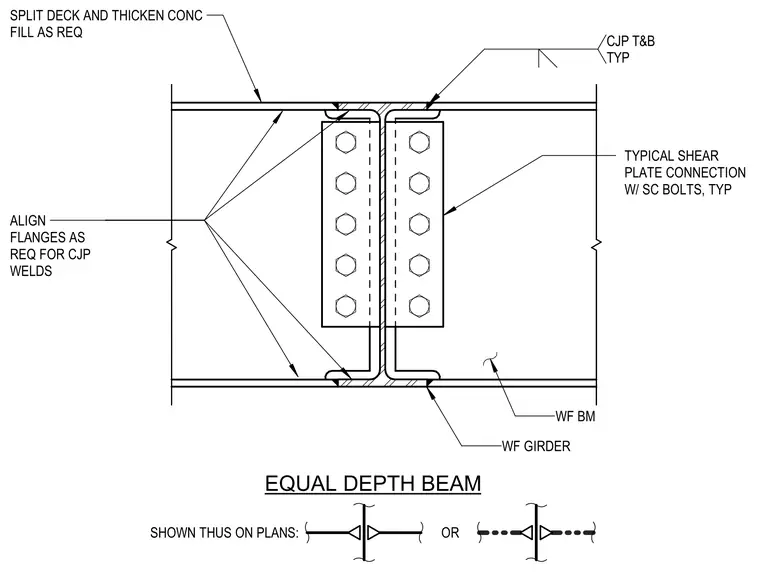

An equal depth wide-flange beam connects to a wide-flange girder utilizing complete joint penetration welds at both top and bottom flanges. A typical shear plate connection with slip-critical bolts secures the beam web to the girder web. The slab deck is split and the concrete fill is thickened as required to accommodate the framing geometry. Flanges are aligned as required for the complete joint penetration welds.
SPLIT DECK AND THICKEN CONC FILL AS REQ WF BM WF GIRDER CJP T&B TYP TYPICAL SHEAR PLATE CONNECTION W/ SC BOLTS, TYP EQUAL DEPTH BEAM SHOWN THUS ON PLANS: ALIGN FLANGES AS REQ FOR CJP WELDS OR
