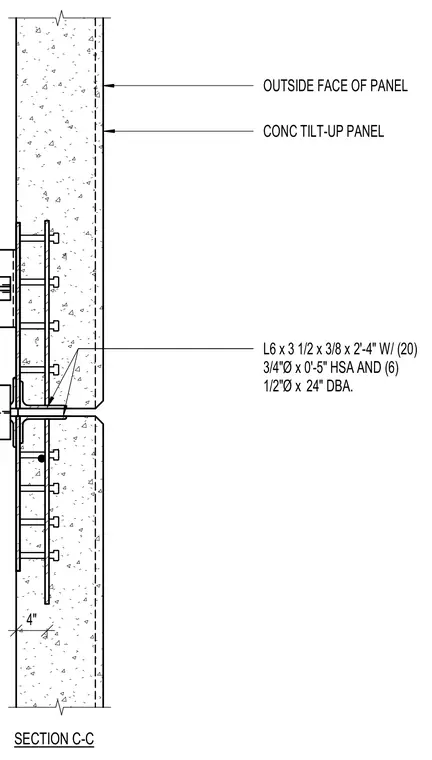

A four-inch concrete tilt-up wall panel connects via a structural steel angle measuring six by three and a half by three-eighths inches and two feet four inches long. The assembly is secured using twenty three-quarter-inch diameter by five-inch head stud anchors and six half-inch diameter by twenty-four-inch dowel bars embedded in the concrete.
L6 x 3 1/2 x 3/8 x 2'-4" W/ (20) 3/4"Ø x 0'-5" HSA AND (6) 1/2"Ø x 24" DBA. OUTSIDE FACE OF PANEL SECTION C-C CONC TILT-UP PANEL 4"
