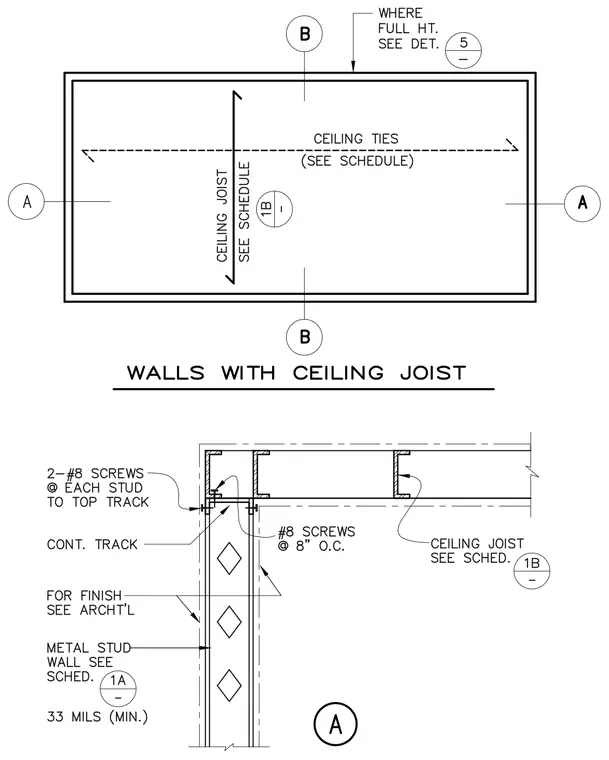

Cold-formed steel wall studs connect to a continuous top track using two number eight screws at each stud. Ceiling joists frame into the assembly and attach with number eight screws spaced at eight inches on center. The metal stud wall has a minimum thickness of thirty-three mils and coordinates with architectural finishes. Where full height conditions occur, refer to detail five on sheet dash. Ceiling ties and joist sizing are determined per the structural schedule.
