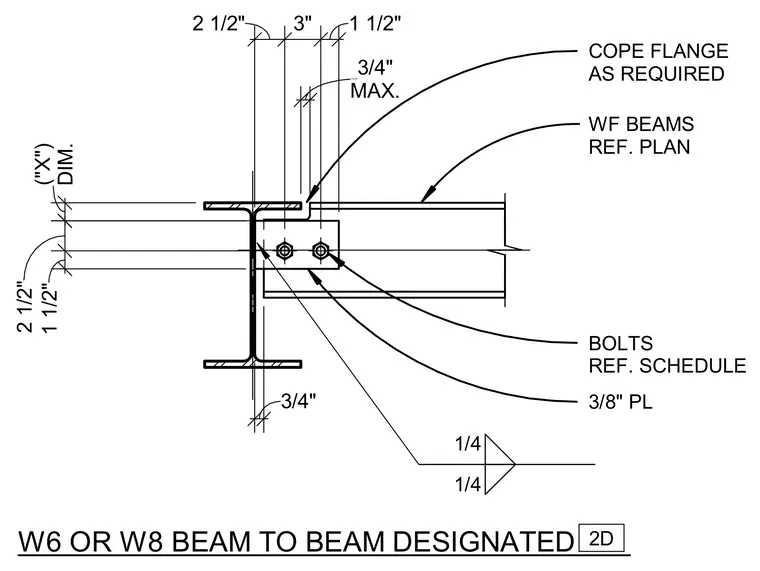

A W6 or W8 wide-flange supported beam connects to a supporting wide-flange beam using a three-eighths-inch thick shear plate welded to the supporting web with quarter-inch fillet welds. The supported beam flange is coped as required with a three-quarter-inch maximum clearance from the support web. The connection is secured with bolts sized per the structural schedule at a two-and-a-half-inch vertical spacing and configured with standard edge and pitch dimensions.
W6 OR W8 BEAM TO BEAM DESIGNATED COPE FLANGE AS REQUIRED WF BEAMS REF. PLAN 3/8" PL 2D DIM. ("X") MAX. 3/4" 1/4 1/4 2 1/2" 3" 1 1/2" 2 1/2" 1 1/2" 3/4" BOLTS REF. SCHEDULE
