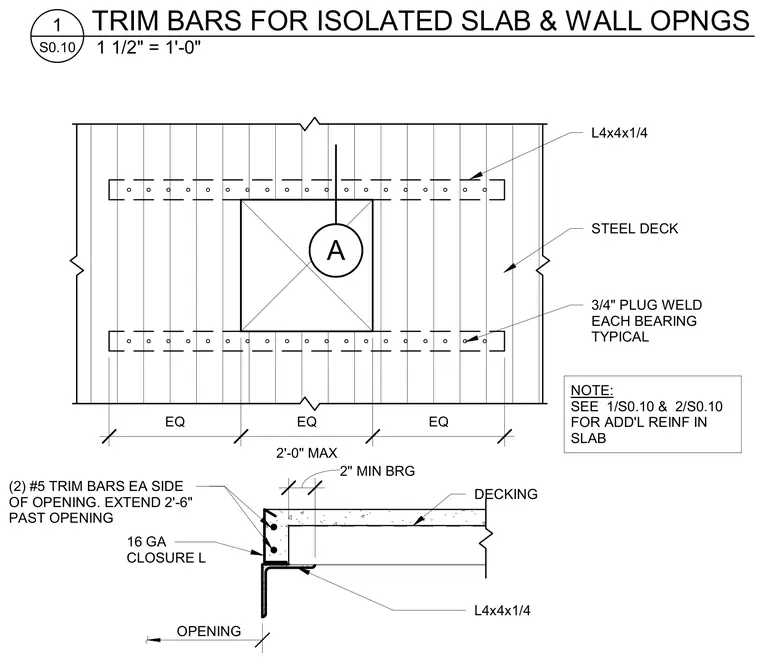

Edge reinforcement and framing configuration around an isolated opening in a concrete slab on metal deck. The assembly features two number five reinforcing bars placed on each side of the opening, extending two feet six inches past the edge. An L4x4x1/4 structural steel angle and a 16-gauge closure angle frame the opening, providing a two-inch minimum bearing. Three-quarter-inch plug welds secure each bearing condition typically.
EQ 2'-0" MAX EQ EQ 2" MIN BRG DECKING L4x4x1/4 16 GA CLOSURE L NOTE: SEE 1/S0.10 & 2/S0.10 FOR ADD'L REINF IN SLAB L4x4x1/4 STEEL DECK 3/4" PLUG WELD EACH BEARING TYPICAL OPENING (2) #5 TRIM BARS EA SIDE OF OPENING. EXTEND 2'-6" PAST OPENING A 1 1/2" = 1'-0" S0.10 1 TRIM BARS FOR ISOLATED SLAB & WALL OPNGS
