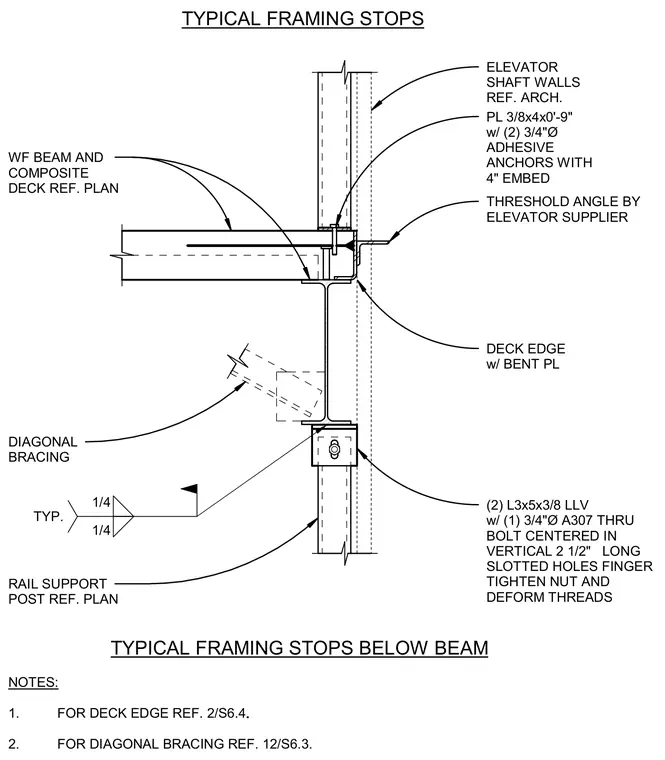

An elevator rail support post framing connection is anchored to a wide-flange steel beam and composite metal deck. A plate measuring three-eighths by four inches by nine inches secures to the deck edge with two three-quarter-inch-diameter adhesive anchors having a four-inch embedment. A threshold angle provided by the elevator supplier interfaces with the elevator shaft walls. Below the beam, two L3x5x3/8 angles connect using a single three-quarter-inch-diameter A307 thru-bolt centered in two-and-a-half-inch-long vertical slotted holes, where nuts are finger-tightened and threads deformed. Diagonal bracing frames into the assembly below, with typical fillet welds noted on the structural steel connections.
WF BEAM AND COMPOSITE DECK REF. PLAN RAIL SUPPORT POST REF. PLAN ELEVATOR SHAFT WALLS REF. ARCH. PL 3/8x4x0'-9" w/ (2) 3/4"Ø ADHESIVE ANCHORS WITH 4" EMBED (2) L3x5x3/8 LLV w/ (1) 3/4"Ø A307 THRU BOLT CENTERED IN VERTICAL 2 1/2" LONG SLOTTED HOLES FINGER TIGHTEN NUT AND DEFORM THREADS DECK EDGE w/ BENT PL DIAGONAL BRACING TYPICAL FRAMING STOPS TYPICAL FRAMING STOPS BELOW BEAM NOTES: 1. FOR DECK EDGE REF. 2/S6.4 . 2. FOR DIAGONAL BRACING REF. 12/S6.3. 1/4 1/4 TYP. THRESHOLD ANGLE BY ELEVATOR SUPPLIER
