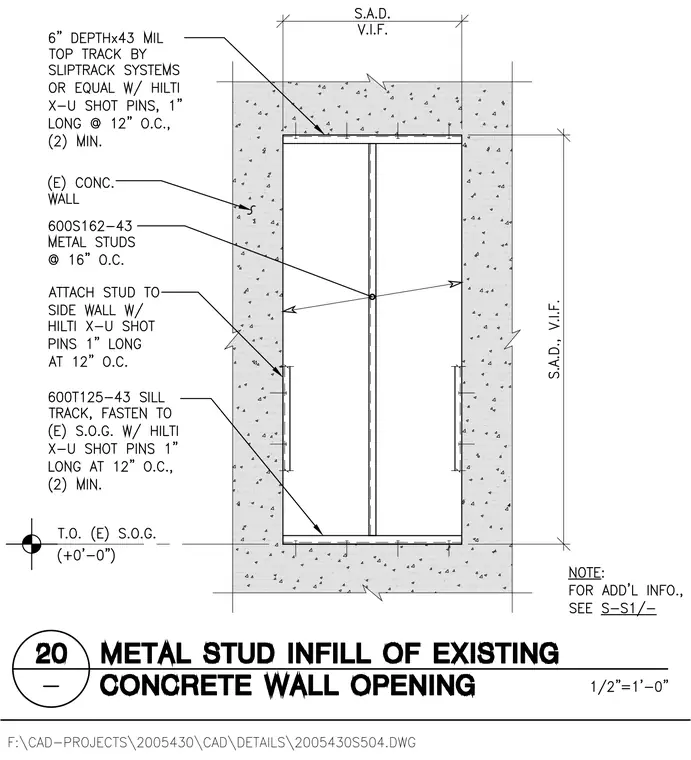

Cold-formed metal framing infill is installed within an existing concrete wall opening using a six-inch depth by forty-three mil top track by Sliptrack Systems or equal secured with Hilti X-U shot pins one inch long at twelve inches on center with a minimum of two. The six-hundred S one sixty-two by forty-three metal studs are spaced at sixteen inches on center and attached to the side wall using Hilti X-U shot pins one inch long at twelve inches on center. A six-hundred T one twenty-five by forty-three sill track is fastened to the existing slab on grade with Hilti X-U shot pins one inch long at twelve inches on center with a minimum of two. Dimensions are field verified and sized as dimensioned.
