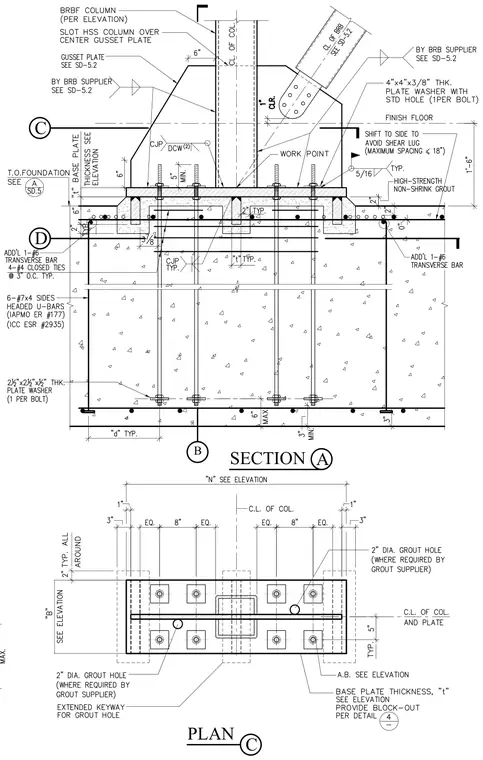

A hollow structural section column slotted over a center gusset plate bears on a structural steel base plate with specified thickness supported by high-strength non-shrink grout over a concrete foundation. A buckling-restrained brace connects to the gusset plate using specified bolts, plate washers, and welds by the brace supplier. The base plate is secured with anchor rods anchored deep into the concrete foundation with headed U-bars, transverse bars, and plate washers. Complete edge distances, grout hole locations, and welding requirements are detailed in both section and plan views.
