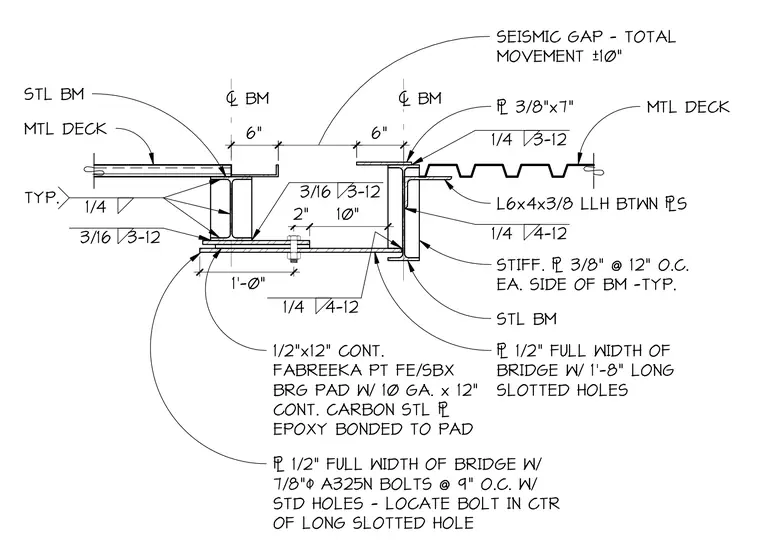

This seismic gap detail accommodates a total movement of plus or minus ten inches between structural steel beams carrying metal deck. A half-inch thick continuous Fabreeka PT FE/SBX bearing pad is epoxy-bonded to a ten-gauge carbon steel plate, positioned below a half-inch thick full-width bridge plate containing one-foot eight-inch long slotted holes. Seven-eighth-inch diameter A325N bolts at nine inches on center with standard holes secure the connection, with bolts located in the center of the long slotted holes. Stiffener plates measuring three-eighths of an inch are spaced at twelve inches on center on each side of the beams, welded with quarter-inch and three-sixteenth-inch fillets. Additional connection is made using six-by-four-by-three-eighth-inch long-leg-horizontal angles between plates and quarter-inch fillet welds.
2" 10" 1'-0" 6" 6" 1 0 " BM BM SEISMIC GAP - TOTAL MOVEMENT ±10" 3/8"x7" 1/4 3-12 MTL DECK L6x4x3/8 LLH BTWN S 1/4 4-12 STIFF. 3/8" @ 12" O.C. EA. SIDE OF BM -TYP. STL BM 1/2" FULL WIDTH OF BRIDGE W/ 1'-8" LONG SLOTTED HOLES 1/4 4-12 3/16 3-12 1/2"x12" CONT. FABREEKA PT FE/SBX BRG PAD W/ 10 GA. x 12" CONT. CARBON STL EPOXY BONDED TO PAD 1/2" FULL WIDTH OF BRIDGE W/ 7/8"/ A325N BOLTS @ 9" O.C. W/ STD HOLES - LOCATE BOLT IN CTR OF LONG SLOTTED HOLE 3/16 3-12 1/4 TYP. MTL DECK STL BM
