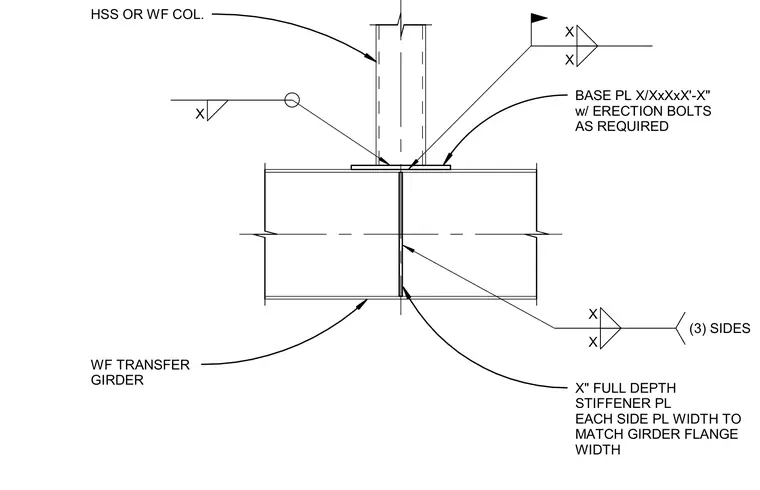

An HSS or wide-flange column connects to a wide-flange transfer girder through a base plate with erection bolts as required. A full-depth stiffener plate is welded to each side of the girder web, with the plate width matching the girder flange width. Welds secure the connection components on three sides.
BASE PL X/XxXxX'-X" w/ ERECTION BOLTS AS REQUIRED HSS OR WF COL. WF TRANSFER GIRDER X" FULL DEPTH STIFFENER PL EACH SIDE PL WIDTH TO MATCH GIRDER FLANGE WIDTH X X (3) SIDES X X X
