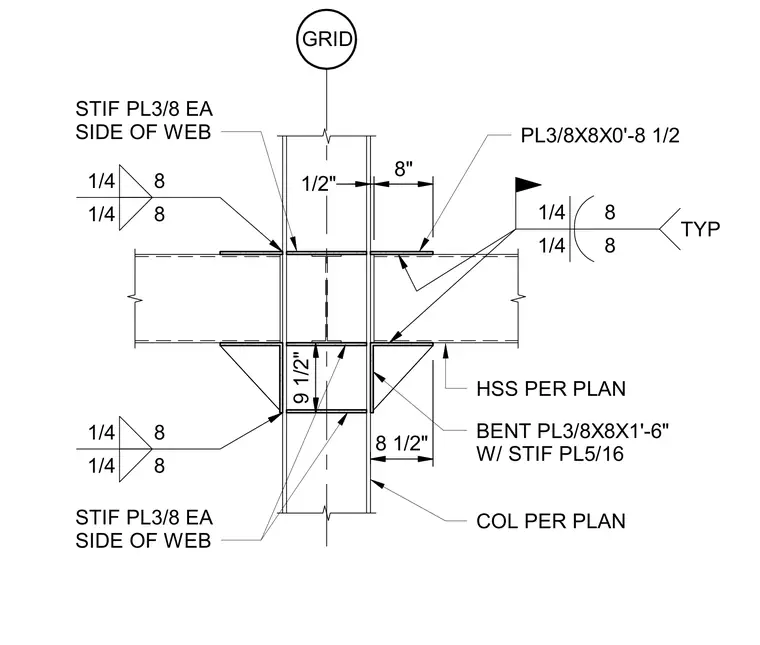

A structural steel beam frames into a hollow structural section column with three-eighths inch thick plates welded to each side of the web. The connection utilizes bent plates measuring three-eighths by eight inches by one foot six inches with five-sixteenths inch stiffener plates welded typical. Additional three-eighths by eight by zero-foot eight-and-one-half-inch plates are detailed at the top and bottom flanges. One-quarter-inch fillet welds secure the connection components as indicated by typical welding symbols.
GRID HSS PER PLAN 1/4 8 1/4 8 TYP COL PER PLAN 1/2" 8" PL3/8X8X0'-8 1/2 BENT PL3/8X8X1'-6" W/ STIF PL5/16 9 1/2" 8 1/2" 1/4 8 1/4 8 1/4 8 1/4 8 STIF PL3/8 EA SIDE OF WEB STIF PL3/8 EA SIDE OF WEB
