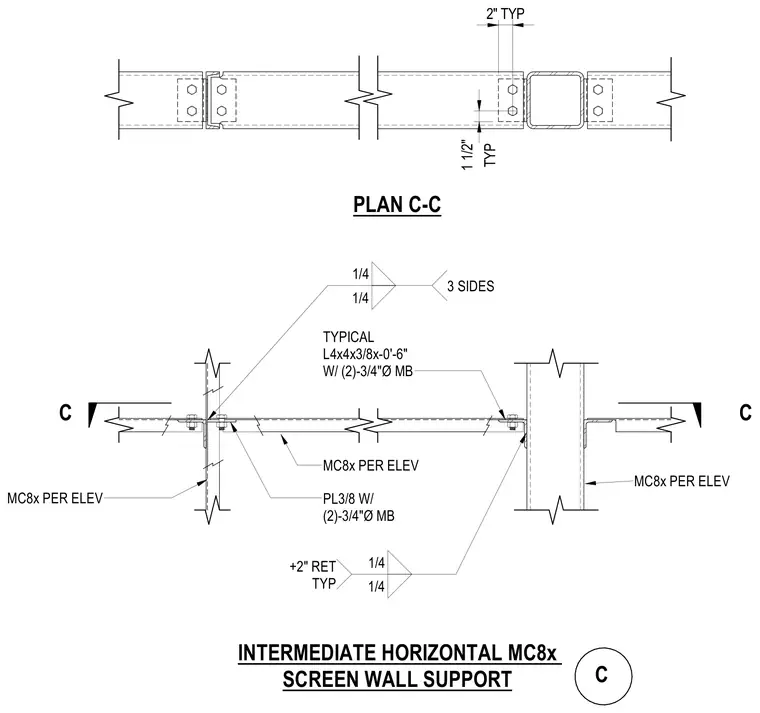

An MC8x intermediate horizontal screen wall channel connects to supporting members via typical L4x4x3/8 by 0'-6" structural steel angles with two three-quarter-inch diameter machine bolts. A 3/8-inch plate with two three-quarter-inch diameter machine bolts ties the assembly together. Fillet welds sized at one-quarter inch are applied on three sides at the connection points, incorporating a typical two-inch return.
INTERMEDIATE HORIZONTAL MC8x SCREEN WALL SUPPORT MC8x PER ELEV TYP 1 1/2" 2" TYP MC8x PER ELEV 1/4 1/4 +2" RET TYP TYPICAL L4x4x3/8x-0'-6" W/ (2)-3/4"Ø MB PL3/8 W/ (2)-3/4"Ø MB 1/4 1/4 3 SIDES C C PLAN C-C MC8x PER ELEV C
