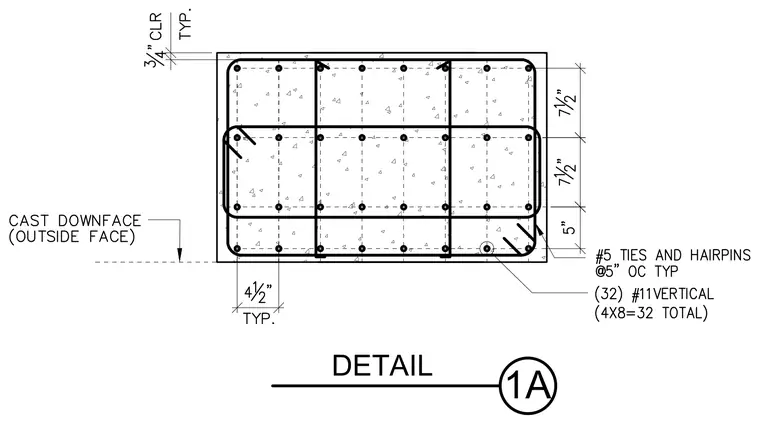

A rectangular concrete column cross-section is reinforced with thirty-two number eleven vertical bars arranged in a four by eight grid totaling thirty-two bars. Transverse reinforcement consists of number five ties and hairpins spaced at five inches on center typically. Concrete cover is maintained at three-quarters of an inch typically. The outside face is designated as the cast downface.
