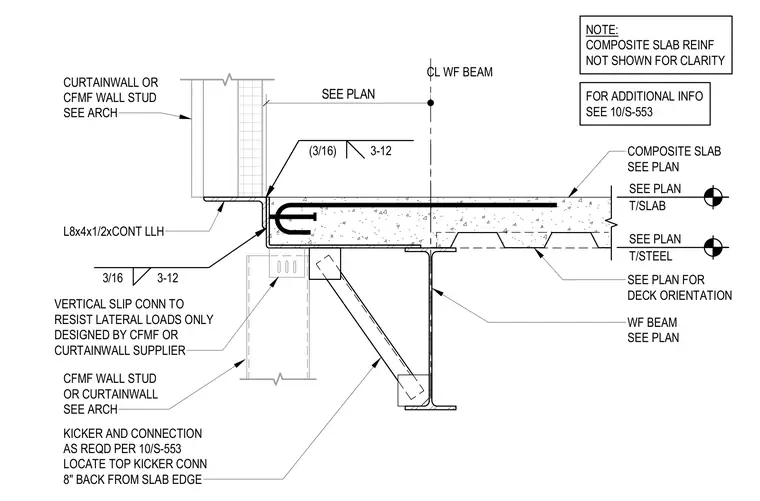

A continuous angle supports the cold-formed metal framing or curtain wall stud at the edge of a composite concrete slab over metal deck. The composite slab bears on a wide-flange steel beam with deck orientation sized per plan. A vertical slip connection designed by the curtain wall or cold-formed steel supplier resists lateral loads only. An L8x4x1/2 continuous long leg horizontal angle is welded with a three-sixteenths inch fillet weld at twelve-inch spacing. A kicker angle and connection are provided as required per detail 10/S-553, with the top kicker connection located eight inches back from the slab edge. Composite slab reinforcement is omitted for clarity.
CL WF BEAM SEE PLAN FOR DECK ORIENTATION COMPOSITE SLAB SEE PLAN WF BEAM SEE PLAN T/SLAB SEE PLAN T/STEEL SEE PLAN SEE PLAN CURTAINWALL OR CFMF WALL STUD SEE ARCH VERTICAL SLIP CONN TO RESIST LATERAL LOADS ONLY DESIGNED BY CFMF OR CURTAINWALL SUPPLIER FOR ADDITIONAL INFO SEE 10/S-553 (3/16) 3-12 CFMF WALL STUD OR CURTAINWALL SEE ARCH L8x4x1/2xCONT LLH 3/16 3-12 KICKER AND CONNECTION AS REQD PER 10/S-553 LOCATE TOP KICKER CONN 8" BACK FROM SLAB EDGE NOTE: COMPOSITE SLAB REINF NOT SHOWN FOR CLARITY
