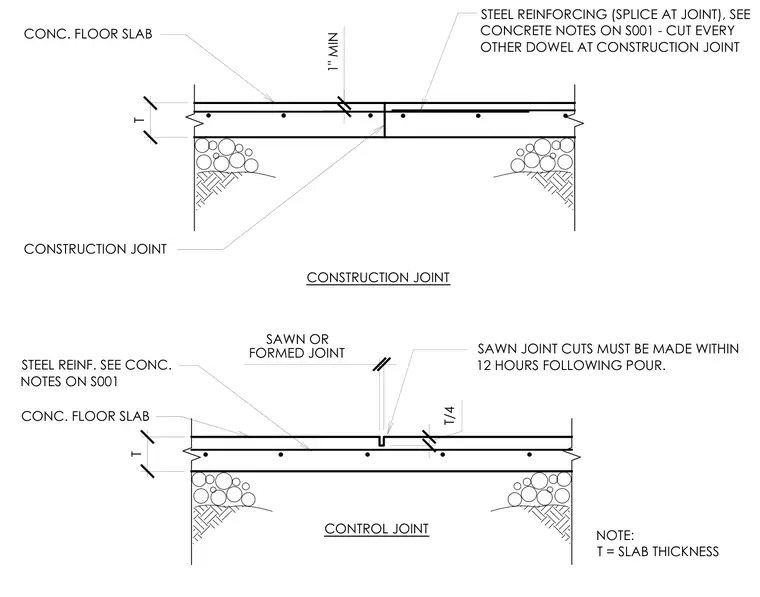

A concrete floor slab rests on a prepared sub-base and incorporates joint details to control cracking. The construction joint features continuous steel reinforcing spliced across the joint with every other dowel cut as specified in the structural notes. The control joint incorporates a sawn or formed joint cut to a depth of one-quarter of the slab thickness, with cuts required within twelve hours following the pour.
T/4 SAWN OR FORMED JOINT CONC. FLOOR SLAB NOTE: T = SLAB THICKNESS CONSTRUCTION JOINT CONTROL JOINT STEEL REINF. SEE CONC. NOTES ON S001 SAWN JOINT CUTS MUST BE MADE WITHIN 12 HOURS FOLLOWING POUR. T T CONC. FLOOR SLAB STEEL REINFORCING (SPLICE AT JOINT), SEE CONCRETE NOTES ON S001 - CUT EVERY OTHER DOWEL AT CONSTRUCTION JOINT CONSTRUCTION JOINT 1" MIN
