A structural steel moment frame connection joins steel beams to a steel column using welded flange plates and bolted shear plates. A572 Grade 50 plates matching the beam flange thickness plus six millimeters align with the top of the beam flange. Additional ten millimeter plates and standard round holes in the beam and shear plate are specified per Steel Detail SC1 Table A. Continuity plates are provided at the top and bottom of the connection, with corners clipped as required. The steel column extends twenty above the beam flange at the roof.

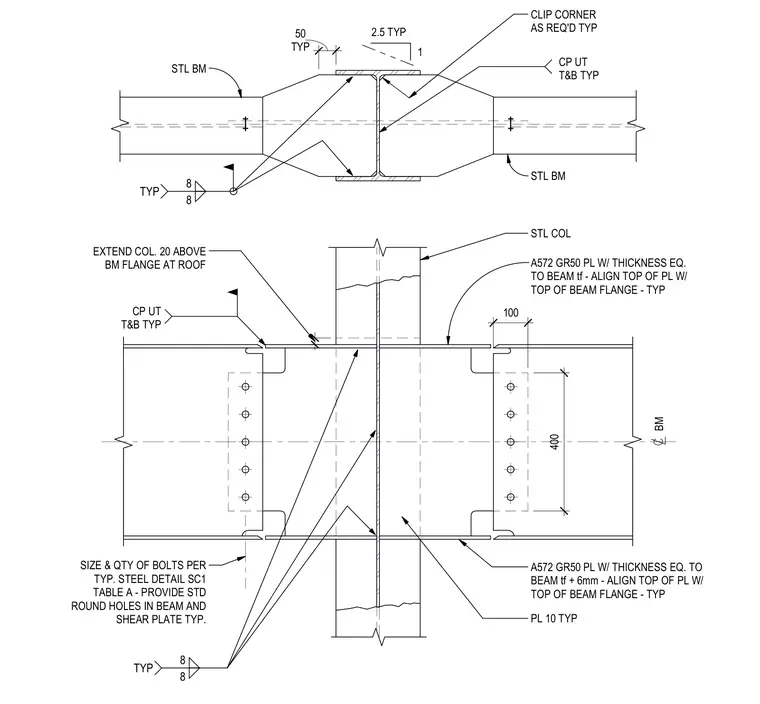

BM C L 400 100 TYP 50 2.5 TYP 1 STL BM CP UT T&B TYP CLIP CORNER AS REQ'D TYP STL BM SIZE & QTY OF BOLTS PER TYP. STEEL DETAIL SC1 TABLE A - PROVIDE STD ROUND HOLES IN BEAM AND SHEAR PLATE TYP. CP UT T&B TYP EXTEND COL. 20 ABOVE BM FLANGE AT ROOF STL COL A572 GR50 PL W/ THICKNESS EQ. TO BEAM tf - ALIGN TOP OF PL W/ TOP OF BEAM FLANGE - TYP A572 GR50 PL W/ THICKNESS EQ. TO BEAM tf + 6mm - ALIGN TOP OF PL W/ TOP OF BEAM FLANGE - TYP PL 10 TYP TYP 8 8 TYP 8 8
