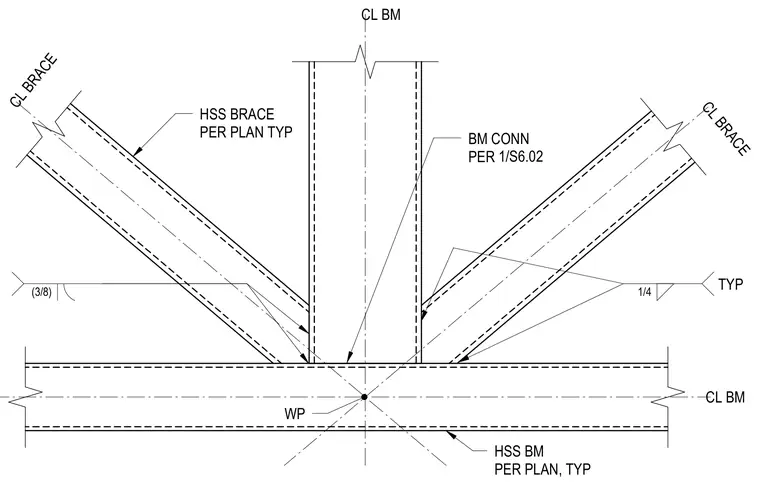

Diagonal hollow structural section braces frame into a horizontal hollow structural section beam at a designated work point. The connection utilizes three-eighths-inch plates and one-quarter-inch fillet welds typical at the brace-to-beam intersections. Beam connections are made per detail 1/S6.02, with centerline alignments maintained for all intersecting members.
CL BM WP BM CONN PER CL BRACE CL BRACE (3/8) TYP 1/4 HSS BRACE PER PLAN TYP HSS BM PER PLAN, TYP CL BM 1/S6.02
