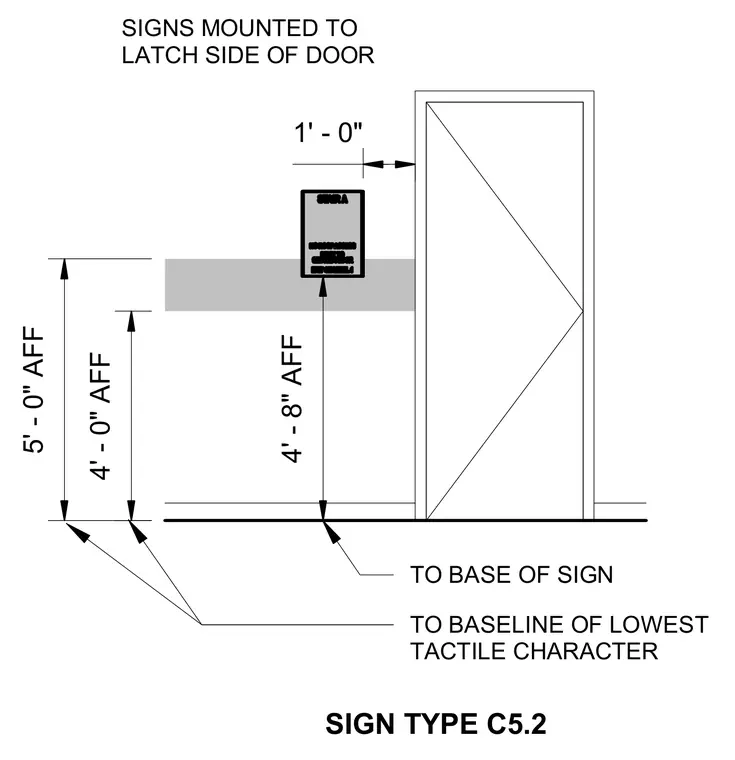

Tactile signage is mounted on the wall adjacent to the latch side of the door frame with a one-foot horizontal offset. The base of the sign is positioned four feet and eight inches above the finished floor. The baseline of the lowest tactile character is located at four feet AFF, while the baseline of the highest tactile character sits at five feet AFF.
1' - 0" 4' - 0" AFF 5' - 0" AFF SIGNS MOUNTED TO LATCH SIDE OF DOOR TO BASE OF SIGN TO BASELINE OF LOWEST TACTILE CHARACTER SIGN TYPE C5.2 4' - 8" AFF
