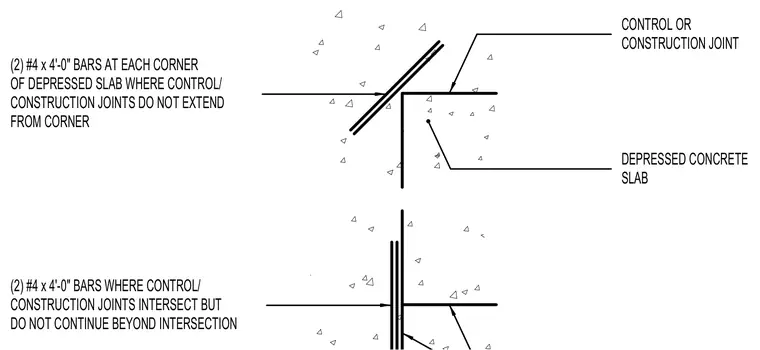

Two #4 bars measuring four feet in length are placed at each corner of a depressed concrete slab where control or construction joints do not extend from the corner. Two #4 bars measuring four feet in length are installed where control or construction joints intersect but do not continue beyond the intersection. These reinforcing bars prevent cracking at re-entrant corners and joint intersections in depressed concrete slabs.
DEPRESSED CONCRETE SLAB (2) #4 x 4'-0" BARS WHERE CONTROL/ CONSTRUCTION JOINTS INTERSECT BUT DO NOT CONTINUE BEYOND INTERSECTION (2) #4 x 4'-0" BARS AT EACH CORNER OF DEPRESSED SLAB WHERE CONTROL/ CONSTRUCTION JOINTS DO NOT EXTEND FROM CORNER CONTROL OR CONSTRUCTION JOINT
