An angle hanger connects to the underside of a concrete on metal deck assembly using two five-eighths inch diameter Hilti KB-TZ2 expansion anchors with three-quarters inch effective embedment per ESR-4266. The structural tee hanger consists of an L4x4x1/4 angle section welded with three-sixteenths inch fillet welds. A typical zero-foot one-inch dimensioning gap and a one-inch maximum clearance apply to the assembly.

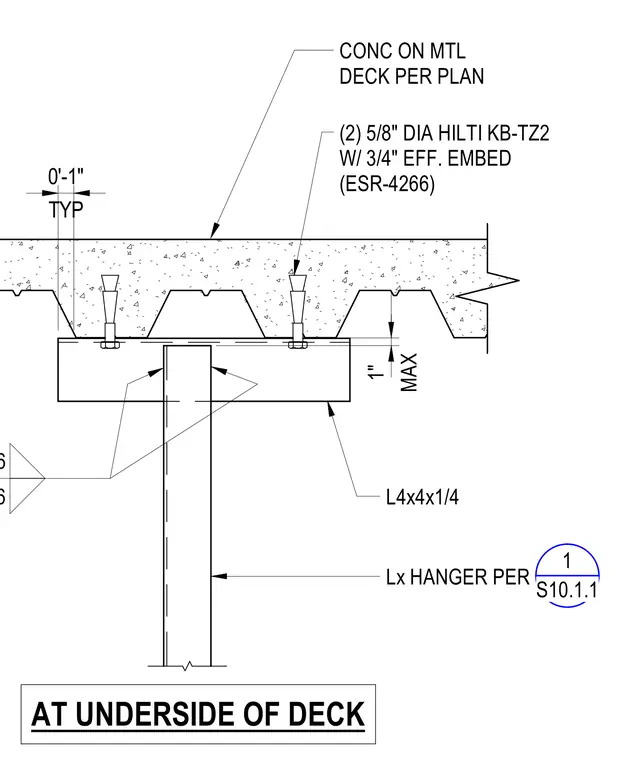

1" MAX TYP 0'-1" L4x4x1/4 3/16 3/16 Lx HANGER PER 1 S10.1.1 AT UNDERSIDE OF DECK CONC ON MTL DECK PER PLAN (2) 5/8" DIA HILTI KB-TZ2 W/ 3/4" EFF. EMBED (ESR-4266)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
