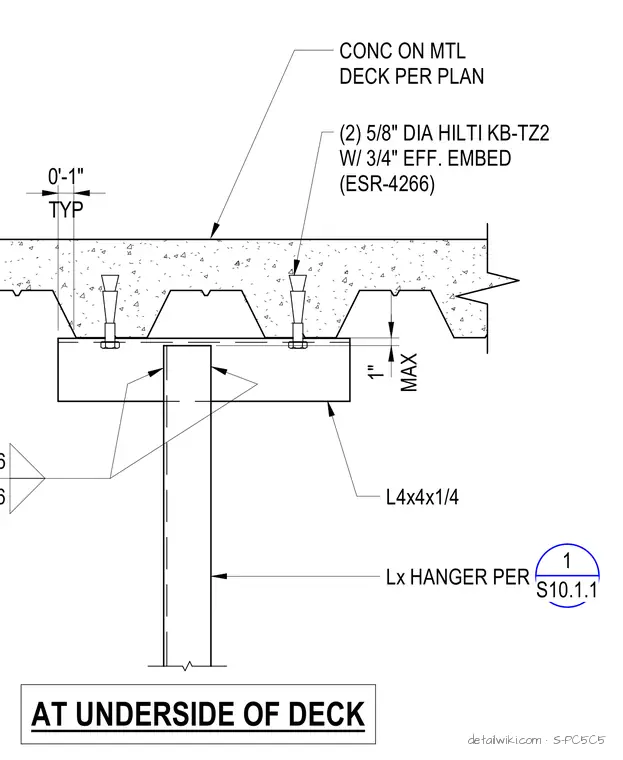

The detail shows a vertical hanger connected to the underside of a concrete slab on metal deck. The assembly utilizes an L4x4x1/4 structural steel angle secured with Hilti KB-TZ2 expansion anchors embedded into the concrete topping. The vertical hanger connects to the structural angle as specified per plan.
Text on the drawing
1" MAX TYP 0'-1" L4x4x1/4 3/16 3/16 Lx HANGER PER 1 S10.1.1 AT UNDERSIDE OF DECK CONC ON MTL DECK PER PLAN (2) 5/8" DIA HILTI KB-TZ2 W/ 3/4" EFF. EMBED (ESR-4266)
