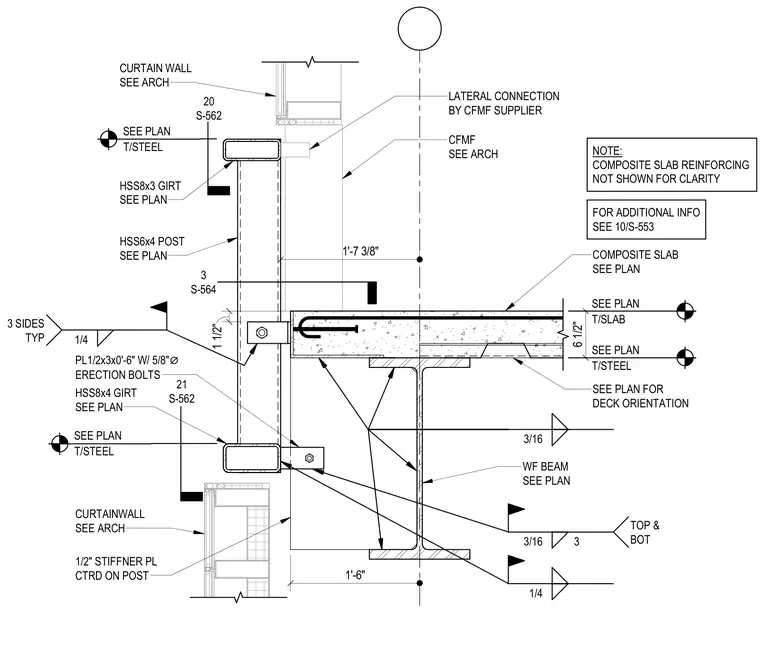

An HSS6x4 structural post supports upper and lower HSS8x3 and HSS8x4 girts, framing into the edge of a composite concrete slab and wide-flange beam assembly. A half-inch thick stiffener plate centered on the post connects to the slab edge using a plate with five-eighths inch diameter erection bolts and a quarter-inch fillet weld on three sides typically. Additional framing includes cold-formed metal framing and curtain wall interfaces located per architectural plans. A note specifies that composite slab reinforcing is omitted for clarity.
1'-7 3/8" 1 1/2" 1'-6" 1/4 3/16 3 TOP & BOT 3/16 WF BEAM SEE PLAN SEE PLAN FOR DECK ORIENTATION T/SLAB SEE PLAN T/STEEL SEE PLAN COMPOSITE SLAB SEE PLAN FOR ADDITIONAL INFO SEE 10/S-553 LATERAL CONNECTION BY CFMF SUPPLIER CFMF SEE ARCH CURTAIN WALL SEE ARCH HSS8x3 GIRT SEE PLAN HSS6x4 POST SEE PLAN HSS8x4 GIRT SEE PLAN CURTAINWALL SEE ARCH T/STEEL SEE PLAN T/STEEL SEE PLAN 6 1/2" 3 S-564 20 S-562 21 S-562 1/2" STIFFNER PL CTRD ON POST PL1/2x3x0'-6" W/ 5/8" ⌀ ERECTION BOLTS 1/4 3 SIDES TYP NOTE: COMPOSITE SLAB REINFORCING NOT SHOWN FOR CLARITY
