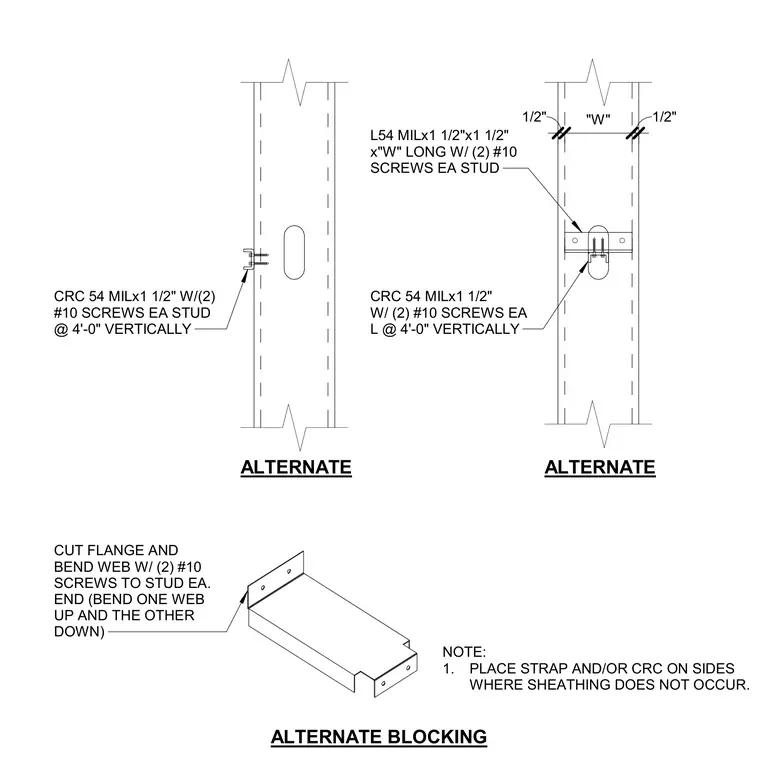

Cold-formed steel framing is braced using a 54 mil cold-rolled channel secured to each stud with two number 10 screws vertically at four-foot intervals. An alternate configuration uses a 54 mil angle with two number 10 screws per stud, attached to the cold-rolled channel with two number 10 screws at four-foot intervals. Alternate blocking consists of a cut and bent web fastened to the stud at each end using two number 10 screws, with flanges oriented in opposite directions. Straps or cold-rolled channels are placed on sides where sheathing is omitted.
ALTERNATE BLOCKING CUT FLANGE AND BEND WEB W/ (2) #10 SCREWS TO STUD EA. END (BEND ONE WEB UP AND THE OTHER DOWN) NOTE: 1. PLACE STRAP AND/OR CRC ON SIDES WHERE SHEATHING DOES NOT OCCUR. ALTERNATE ALTERNATE CRC 54 MILx1 1/2" W/(2) #10 SCREWS EA STUD @ 4'-0" VERTICALLY L54 MILx1 1/2"x1 1/2" x"W" LONG W/ (2) #10 SCREWS EA STUD CRC 54 MILx1 1/2" W/ (2) #10 SCREWS EA L @ 4'-0" VERTICALLY 1/2" "W" 1/2"
