Structural · S-PBJXF

Floor Stud Connection with Brick Veneer

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Facades / Cladding Floors / Slabs Decks Arches Connections / Plates Reinforcing

Connections

Deck Attachment

About this detail

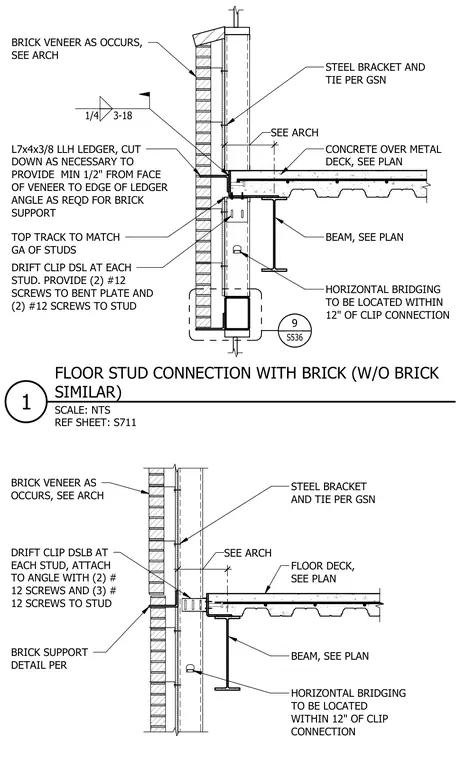

An L7x4x3/8 long-leg horizontal steel ledger angle supports brick veneer and is cut down as necessary to maintain a minimum one-half-inch clearance from the face of the veneer to the edge of the angle. A steel bracket and tie per general structural notes ties back to the backup assembly. Cold-formed steel studs use a top track matching the stud gauge and feature drift clips attached at each stud with two number twelve screws to the bent plate and two number twelve screws to the stud. Horizontal bridging is located within twelve inches of the clip connection. A supporting steel floor beam carries the concrete over metal deck assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
