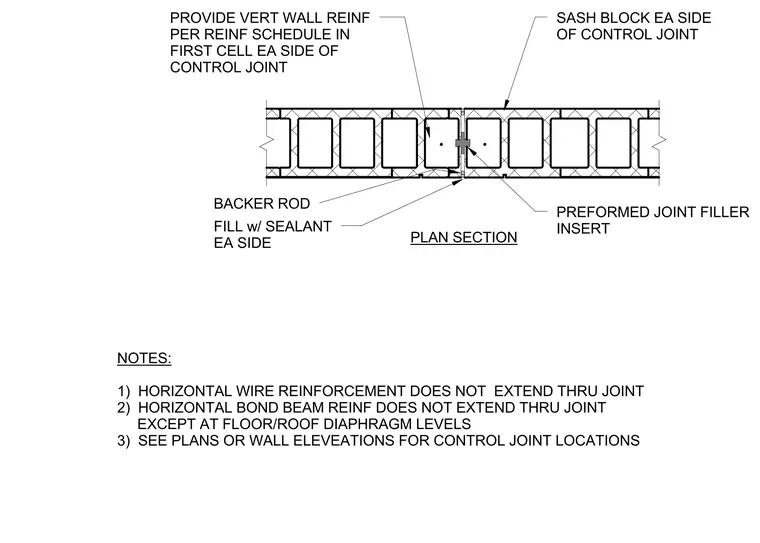

This plan section details a concrete masonry unit wall control joint utilizing a preformed joint filler insert at the exterior face. A backer rod and sealant are applied to each side of the joint to maintain weather tightness while allowing movement. Sash blocks are provided on each side of the control joint. Vertical wall reinforcement is specified per the reinforcement schedule in the first cell on each side of the joint. Horizontal wire reinforcement and horizontal bond beam reinforcement do not extend through the joint except at floor or roof diaphragm levels.
PREFORMED JOINT FILLER INSERT NOTES: 1) HORIZONTAL WIRE REINFORCEMENT DOES NOT EXTEND THRU JOINT 2) HORIZONTAL BOND BEAM REINF DOES NOT EXTEND THRU JOINT EXCEPT AT FLOOR/ROOF DIAPHRAGM LEVELS 3) SEE PLANS OR WALL ELEVEATIONS FOR CONTROL JOINT LOCATIONS FILL w/ SEALANT EA SIDE BACKER ROD PROVIDE VERT WALL REINF PER REINF SCHEDULE IN FIRST CELL EA SIDE OF CONTROL JOINT SASH BLOCK EA SIDE OF CONTROL JOINT PLAN SECTION
