Structural · S-PBEV3

Top Of Pile Cap

Materials

Concrete

Elements

Columns Floors / Slabs Foundations / Footings Reinforcing

Connections

Rebar Splice / Development

About this detail

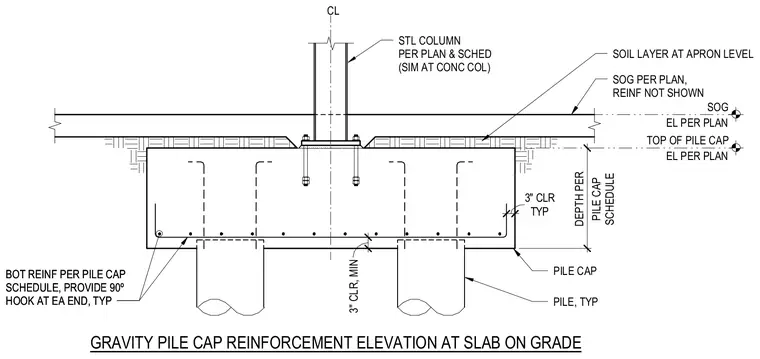

A reinforced concrete pile cap supports a steel column connected per plan and schedule, with similar details applicable for a concrete column. The concrete pile cap bears on typical piles below and sits beneath a slab on grade. Bottom reinforcement is provided per the pile cap schedule with ninety-degree hooks at each end and maintains a typical three-inch clearance. A minimum three-inch clearance is maintained at the bottom, and soil layers are shown at the apron level.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
